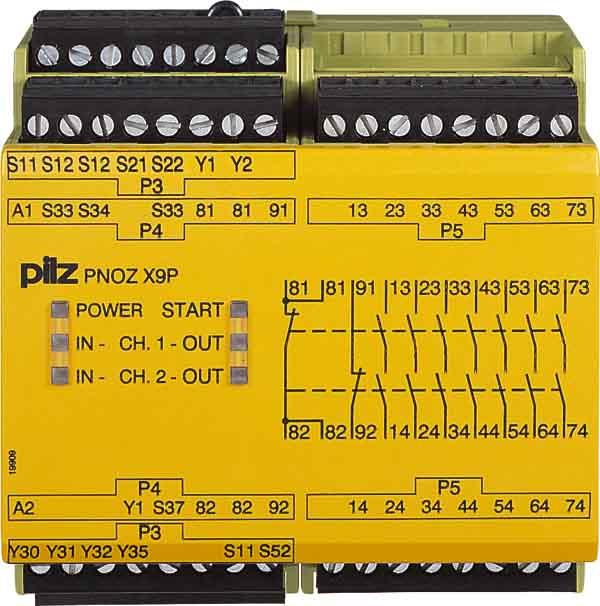

Pilz 774605 PNOZ X9 100-120VAC 24VDC 7n/o 2n/c 2so

Ratings
BrandMore from Pilz
Delivered between Tue, 31.3. and Wed, 15.4.
free shipping

Product details

The Pilz safety relay 774605 PNOZ X9 is a highly advanced installation relay designed for the safe monitoring and control of machines and systems. It features a 1/2-channel configuration with cross-circuit detection, ensuring reliable functionality. With an input voltage of 100-120V AC and 24V DC, this device is versatile in its applications. The integrated screw terminals facilitate installation and connection. The device monitors emergency stop functions and safety doors, making it an ideal solution for safety-critical applications. Its compact design, with a width of 90 mm, allows for easy integration into existing systems. The PNOZ X9 is engineered to provide safe and efficient control, making it excellent for use in industrial environments.

  • 1/2-channel configuration with cross-circuit detection
  • Monitoring of emergency stop and safety doors
  • Integrated screw terminals for easy installation
  • Suitable for safety-critical applications.

Key specifications

Scope of delivery
Emergency stop switchgear
Output current type
AC
Relay type
Monitoring relay
Output voltage
24 V
input voltage
100 V
Number of poles
7x

General information

Item number
23166052
Manufacturer
Pilz
Category
Relays
Manufacturer no.
774605
Release date
21.11.2022
External links
Manufacturer's site (de)

Relay properties

Relay type
Monitoring relay
input voltage
100 V
Output voltage
24 V
Output current type
AC
Switching function
Opener
Number of openers
2x
Number of closers
7x
Number of poles
7x
Manufacturer Type
774605 PNOZ X9 100-120VAC 24VDC 7n, o 2n

Smart home features

Smart Home
Not compatible

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Emergency stop switchgear

Product dimensions

Width
90 mm

30-day right of return
24 Months Warranty (Bring-in)
