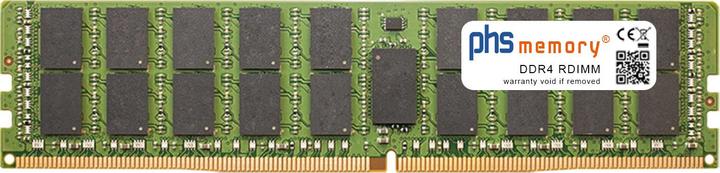

PHS-memory RAM suitable for Advantech ATX ASMB-825

This 128GB RAM is 100% compatible with the Advantech ATX ASMB-825.

Information on memory configuration: The following technical specifications should be considered in advance: The device can install RDIMM and RDIMM 3DS (Registered DIMM) or LRDIMM and LRDIMM 3DS (Load Reduced DIMM) RAM. LRDIMM memory is recommended when large memory capacities are required. RDIMM and RDIMM 3DS memory modules cannot be mixed with LRDIMM and LRDIMM 3DS memory. If a memory upgrade is to be made with the existing RAM, it must be checked which base memory technology (RDIMM / LRDIMM) is present. When using a multiprocessor system, memory slots should always be populated identically for each CPU. Memory slots without a processor must not be populated. If memory modules with higher clock rates than specified by the system are offered, the memory clock will automatically adjust to the system specifications. The CPU supports 6 DIMMs per memory channel.

Memory compatibility depending on CPU generation:

• Scalable Gen 1: 64GB RDIMM 3DS, 64GB RDIMM 2Rx4, 64GB LRDIMM, 128GB RDIMM 3DS, 128GB LRDIMM
• Maximum memory speed of the possible CPUs: Xeon CPUs of the 1st generation are offered as Bronze, Silver, Gold, or Platinum. The different processor series support different maximum clock frequencies:
• Xeon CPU series: max. Speed MHz
• Bronze: 3100, 2133
• Silver: 4100, 2400
• Gold: 5100, 2666
• Gold: 6100, 2666
• Platinum: 8100, 2666.
