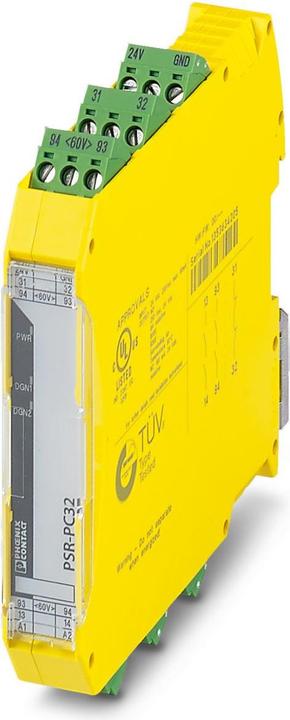

Phoenix Coupling relay

Ratings
BrandMore from Phoenix
Delivered between 26.2.2026 and 12.3.2026
free shipping

Product details

The coupling relay from Phoenix is a highly advanced relay specifically designed for SIL 3 high- and low-demand applications. It enables reliable coupling of digital signals to the periphery and offers a wide input voltage range from 24 V to 230 V. With two release current paths covering different voltage ranges, as well as a feedback current path, this relay is ideal for complex automation and control tasks. The design includes a pluggable screw terminal, allowing for easy installation and maintenance. The coupling relay is suitable for applications that require a safe state in the event of a failure, making it a valuable component in safety-critical systems.

  • Suitable for SIL 3 high- and low-demand applications
  • Wide input range from 24 V to 230 V
  • Two release current paths for different voltage ranges
  • Includes pluggable screw terminal for easy installation.

Key specifications

Scope of delivery
2 enable current paths (1x up to 60 V, 1x up to 250 V) 1 feedback current path, couples digital signals to the periphery, Coupling relay for SIL 3 high and low demand applications, Plug-in screw terminal, Safe-State-Off applications, Wide-range input 24 V ... 230 V
Output voltage
250 V
input voltage
230 V
Item number
40973934

General information

Manufacturer
Phoenix
Category
Relays
Manufacturer no.
2700581
Release date
18.12.2023

Relay properties

input voltage
230 V
Output voltage
250 V
Switching function
Changer
Number of openers
1 x
Number of closers
2 x
Manufacturer Type
PSR-PC32-2NO-1NC-24-230UC-SC

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 enable current paths (1x up to 60 V, 1x up to 250 V) 1 feedback current path, couples digital signals to the periphery, Coupling relay for SIL 3 high and low demand applications, Plug-in screw terminal, Safe-State-Off applications, Wide-range input 24 V ... 230 V

Product dimensions

Length
114.50 mm
Width
17.50 mm
Height
112.20 mm
