Phoenix Contact Safety relay

Ratings
BrandMore from Phoenix Contact
Delivered between Mon, 18.5. and Tue, 19.5.
Only 1 piece in stock at third-party supplier
Supplied by
free shipping

Product details

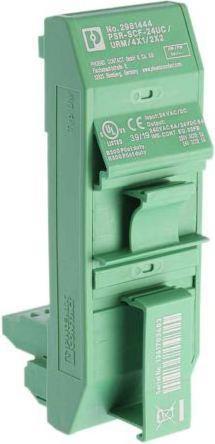

The safety relay from Phoenix Contact is a highly advanced installation relay designed for use in safety-critical applications. It meets the requirements of Category 1, PL c according to EN ISO 13849-1 as well as SILCL 1 and SIL 1 according to IEC 61508. With safe feedback through forcibly guided signaling contacts in accordance with EN 50205, it offers reliable functionality. The relay allows for easy execution of proof tests according to IEC 61508 thanks to the integrated signaling contact. It can be controlled in single or dual-channel mode and features four release current paths and two feedback current paths. The device is suitable for operation in a temperature range of 20 to 55 °C and is RoHS compliant. With compact dimensions and a weight of 127 grams, it is ideal for mounting on DIN rails and provides a secure screw terminal for a reliable connection.

  • Suitable for safety-critical applications up to Category 1, PL c
  • Easy execution of proof tests through integrated signaling contact
  • Forcibly guided contacts for enhanced safety
  • Four normally open and two normally closed contacts for flexible applications
  • Robust design with an operating temperature of 20 to 55 °C.

Key specifications

Relay type
Step switch
input voltage
24 V
Output voltage
24 V
Electric current output
6 A
Output current type
AC

General information

Item number
8410508
Manufacturer
Phoenix Contact
Category
Relays
Manufacturer No.
2981444
Release date
20.4.2018

Relay properties

Relay type
Step switch
input voltage
24 V
Output voltage
24 V
Electric current output
6 A
Output current type
AC
Number of openers
2x
Number of closers
2x

Smart home features

Smart home
Not compatible

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
Emergency stop relay

Product dimensions

Length
55 mm
Width
40 mm
Height
111 mm
Weight
127 g

30-day right of return
24 Months Warranty (Bring-in)
