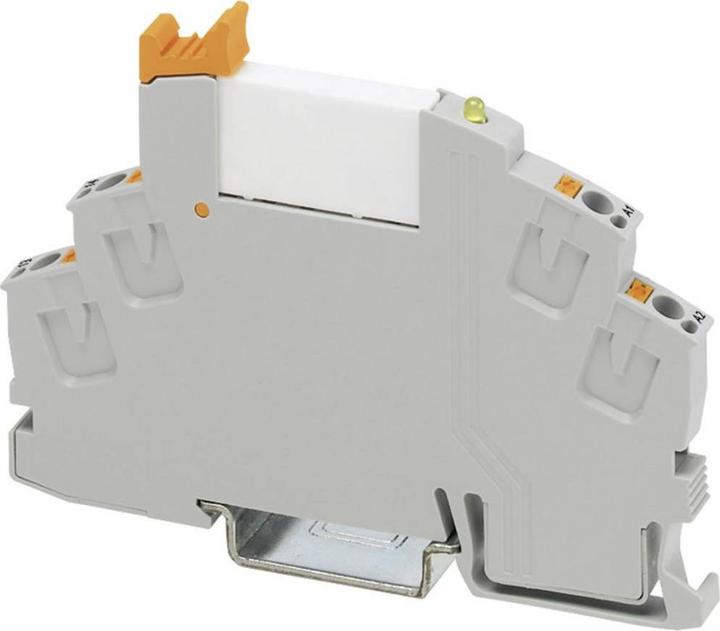

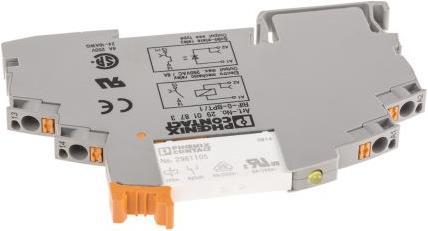

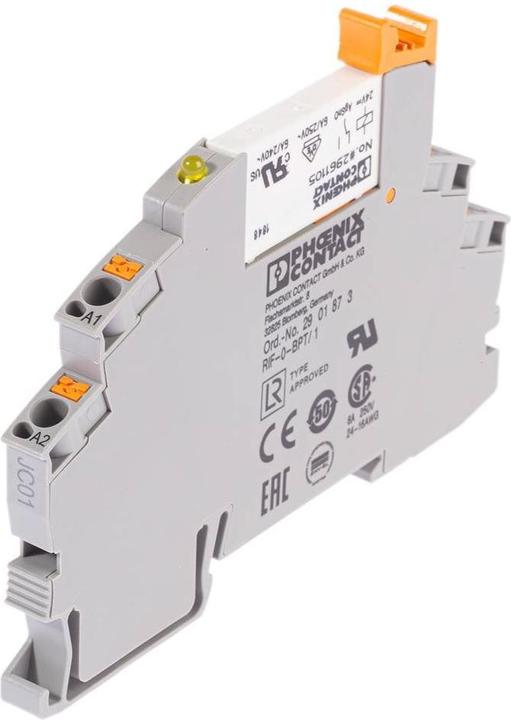

Phoenix Contact RIF-0 Relay Module assembled 24DC/1
Minimum order 3Supplied by
Conrad CH
Free shipping starting at 50.–
Coil voltage = 24V dc
contact arrangement = 1 pole normally open contact
Switching current = 6 A
Connection type = Pluggable
Coil resistance = 3.388 kΩ
Switching voltage AC max. = 250V ac
Switching voltage DC max. = 250V dc
Application Type = Power
Length = 6.2mm
Depth = 66mm
Height = 93mm
Dimensions = 6.2 x 66 x 93mm
Operating temperature min = -40°C
Relay power module RIF0. Professional series of power relays consisting of a relay base with ejector and a relay with multilayer gold contact or power contact. Easy wiring thanks to plug-in connection technology Easy handling and extension of the range Plug-in display/interference suppression module Options with 1 and 2 contacts 5 ms typical response time Yellow LED signal light Protection circuit with damping diode.
input voltage | 24 V |
Scope of delivery | Relay module with ejector and power contact relay. |
Output voltage | 24 V |
Output current type | DC |
Electric current output | 0 A |
Relay type | Installation relay |
Item number | 9951210 |
Manufacturer | Phoenix Contact |
Category | Relays |
Manufacturer no. | 2903361 |
Release date | 22.10.2018 |
Sales rank in Category Relays | 18 of 23412 |
Minimum order | 3 |
Relay type | Installation relay |
input voltage | 24 V |
Output voltage | 24 V |
Electric current output | 0 A |
Output current type | DC |
Resistor | 3388 Ω (ohm) |
Switching function | Normally open |
Number of openers | 1 x |
Number of closers | 1 x |
Number of poles | 1 x |
Number of switching cycles | 1 x |
Max. Switching capacity | 1.50 kW |
Manufacturer Type | Rif-0-rpt-24dc/ 1 |
Smart Home | Not compatible |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Relay module with ejector and power contact relay. |
Length | 66 mm |
Width | 6.20 mm |
Height | 93 mm |
Weight | 24.95 g |
Length | 10.20 cm |
Width | 7.70 cm |
Height | 6 cm |
Weight | 21 g |
