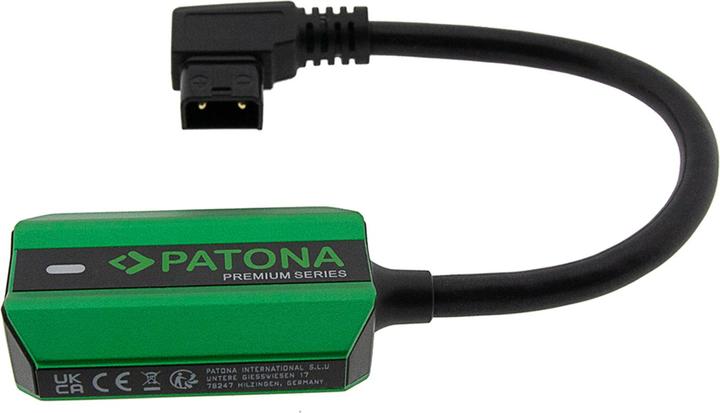

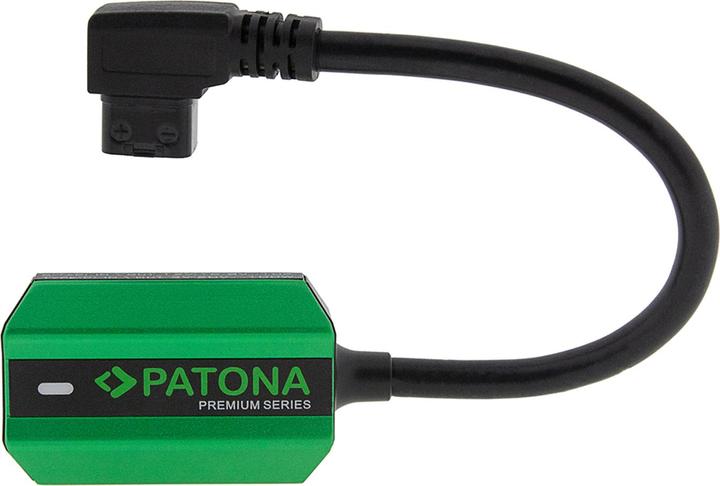

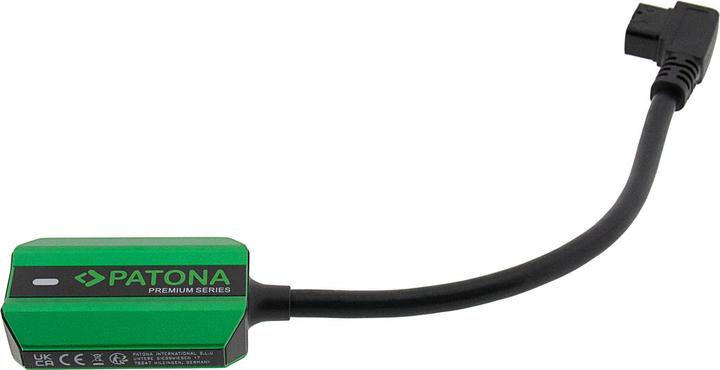

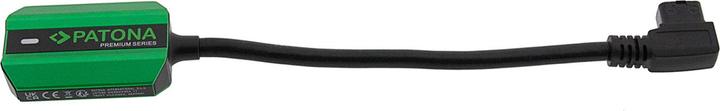

Patona PD100W Mobile Adapter D-Tap USB-C

The PATONA PD100W is an adapter from D-Tap to USB-C. A special highlight is that the power supply works in both directions, meaning this adapter can both deliver and receive power from the battery. Due to its size and weight, it is smaller and lighter than a conventional charger.

Application options:
1.) The battery delivers power: The device to be charged is connected via the USB-C port on the adapter, and the D-Tap connector of the adapter is connected to the D-Tap output of the battery.
2.) The battery receives power: A USB power supply is connected to the USB-C output, and the D-Tap connector of the adapter is connected to the D-Tap output of the battery. The battery is now being charged.

Technical specifications:

• Bi-directional transfer from D-Tap to USB-C
• Maximum power transfer: 100W
• D-Tap Output/Input: 12V – 16.8V, 10A
• USB-C Output/Input: 3V – 20V, 5A
• Intelligent detection of charging protocols
• Supported charging protocols: FCP, AFC, SCP, DRP, Try SRC, PD3.0, QC2/QC3.0/QC3.0+
• Automatic adjustment of output voltage
• Protection against over/under voltage, short circuit, and battery overload with silicone heat protection bumper
• Standby power consumption: 0.18mA
• LED control light (blue light during operation, no light when no connection is established)
• Material: Aluminum alloy, plastic
• Dimensions: 250 x 35 x 17mm (L x W x H)
• Weight: 66g
• Brand: PATONA Premium

Compatibilities: compatible with Samsung SFC/AFC and PPS as well as QC, PD, and Huawei SCP

Example charging times: (data without guarantee)

• 95Wh Li-ion battery: 50 minutes; 80% charging capacity
• 145Wh Li-ion battery: 75 minutes; 80% charging capacity.
