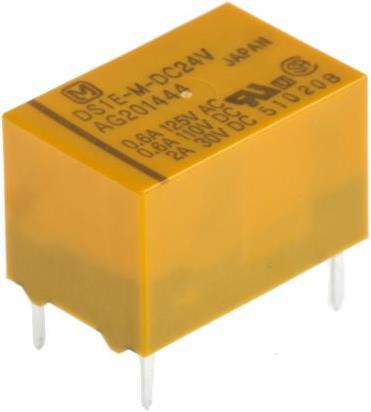

Panasonic Relay,SPDT-NO/NC,24DC,Vol-Rtg 30DC,PCB

Minimum order 7
Ratings
BrandMore from Panasonic
Delivered between Tue, 24.6. and Mon, 7.7.
More than 10 items in stock at third-party supplier
Supplied by

Product details

Signal relay, type DS1E-M-DC24V, width 9.9 mm, height 9.9 mm, length 15 mm, switching power 125 VA, switching voltage AC 250 V, switching voltage DC 220 V, switching current 3 A, coil voltage 24 V, coil resistance 1.44 kΩ, connection type pin terminals, coil type DC, relay type miniature, contact configuration 1 changeover, series DS.

Key specifications

input voltage
24 V
Output voltage
24 V
Output current type
DC
Electric current output
3 A
Item number
9956418

General information

Manufacturer
Panasonic
Category
Relays
Manufacturer no.
DS1E-M-DC24V
Release date
22.10.2018
External links
Manufacturer's site (de)
Minimum order
7
Minimum order
7

Relay properties

input voltage
24 V
Output voltage
24 V
Electric current output
3 A
Output current type
DC
Resistor
1440 Ω (ohm)

Smart home features

Smart Home
Not compatible

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Panasonic fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Length
15 mm
Width
9.90 mm
Height
9.90 mm

30-day right of return
24 Months Warranty (Bring-in)
