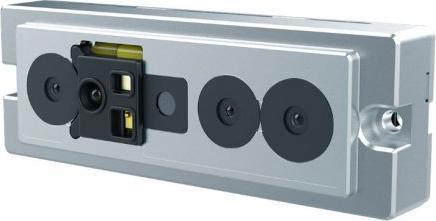

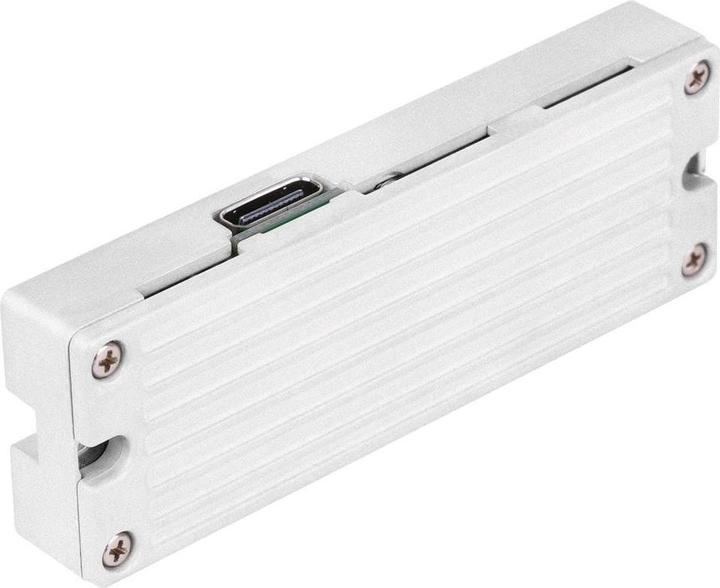

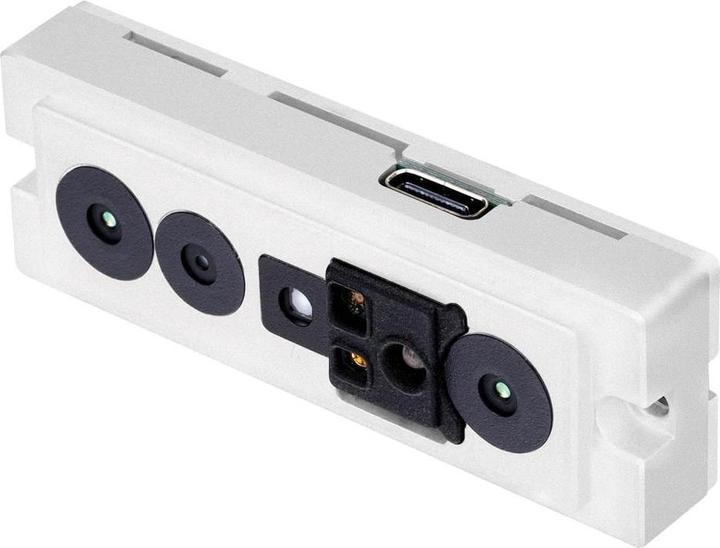

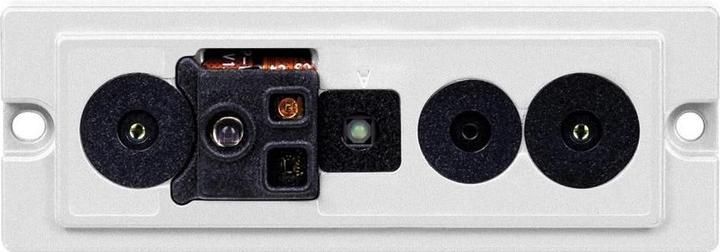

Orbbec 3D Astra Stereo S U3

The Orbbec3D Stereo S is a very compact 3D camera with a high RGB/image resolution of 1920 x 1080 pixels at 30 FPS. The depth images are available at a resolution of 1280 x 800 pixels at 30 FPS. The data obtained can be used for various applications via the USB Type-C port. These cameras are already being utilized today in the following areas:

• Robotics / autonomous systems
• Quality control
• 3D scanners / full body scanners & handheld

This wide range of applications is made possible not only by excellent hardware but also by mature software and driver packages, making the Orbbec Stereo S compatible with ROS, OpenNI2, Astra SDK, and more.

Features of the Orbbec3D Stereo S

The Orbbec3D Astra Stereo S offers the advantage of outdoor use compared to the Embedded S and Astra Mini. It should be noted that the 3D camera is not protected against moisture; rather, it absorbs sunlight, generating high-resolution images and depth data.

Technical Specifications

• Depth Images: 1280 x 800 @ 30 FPS | 640 x 400 @ 60 FPS | 640 x 400 @ 30 FPS
• RGB/Image Resolution: 1920 x 1080 @ 30 FPS | 1280 x 720 @ 30 FPS | 640 x 480 @ 30 FPS
• Depth FOV: H67.9° V45.3° D78° ± 3.0°
• RGB FOV: H71.5° V56.7° D84°
• Dimensions: 65.3 x 22.5 x 12.3 mm
• Measurement Range: 0.25 - 2.5 m
• Data & Power Supply: USB
• Power Consumption: < 2.2 W

Delivery Contents

• 1 x Orbbec Astra Stereo S U3 3D camera.
