Online USV Xanto 3000R: 3000VA/3000W

3000 VA, 3000 W, Online double converter UPS
Delivered between Tue, 20.5. and Tue, 27.5.
9 items in stock at third-party supplier
Supplied by

Product details

The Xanto 3000R is a state-of-the-art online double-conversion UPS specifically designed for use in server rooms and critical IT applications. With an output capacity of 3000 VA and a real power of 3000 W, this system provides reliable protection against power outages and data loss. The UPS is available in a flexible rack-tower design, allowing for easy integration into existing infrastructures. The Xanto 3000R ensures complete decoupling of consumers from the power supply network, enhancing the safety and stability of connected devices. With a typical backup time of up to 17 minutes at half load and 6 minutes at full load, along with a battery charging time of just 4 hours, this system is ideal for continuous operation. The UPS features seven AC outputs and supports various plug types, expanding connection options. Additionally, it offers comprehensive surge protection for fax machines, modems, and networks.

  • Continuous operation technology for complete decoupling of consumers from the power supply network

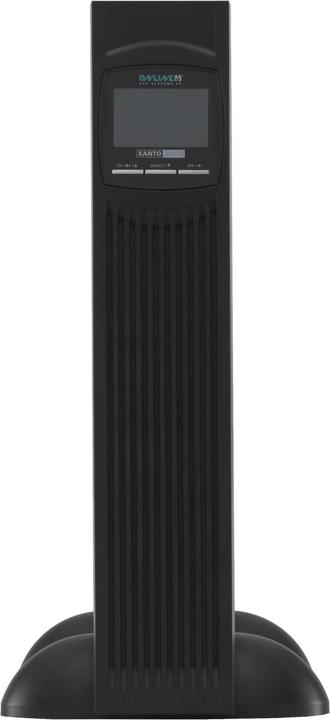

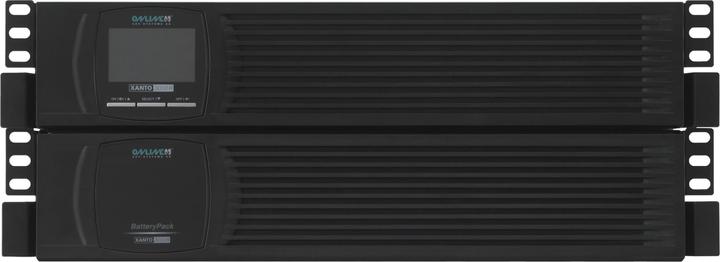

  • Scalable backup time with up to seven additional battery packs
  • Noise level of a maximum of 50 dB for quiet operation
  • Integrated USB and RS-232 ports for easy communication and monitoring
  • Operating temperature range of 0 to 40 °C for versatile applications.

Electrical safety

Due to its high performance, this device requires a 16 Ampère socket (type 23). If no suitable wall socket is available, the conversion must be carried out by an authorised installer.

Key specifications

Operating time at full load
6 min
Model
19" rack
Scope of application
Network cabinetServer room
Plug type
C20
Item number
6521056

General information

Manufacturer
Online USV
Category
UPS
Manufacturer no.
X3000R
Release date
4.9.2017
May include power adapter
Yes

UPS properties

UPS type
Online double converter UPS
Power output
3000 W
Output power capacity
3000 VA
Model
19" rack
Rack Unit
2U
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Network cabinetServer room

Connector plug

Plug type
C20

Connections

Connections
USB 2.0
USB ports
USB-A
Data ports
PS/2 (1x)RS-232 (1x)

Mains supply properties

input voltage
110 - 300 V
output voltage
240V
Max. input current
17.60 A
Input frequency
50 - 60 Hz
Output frequency
50 - 60 Hz
Efficiency battery operation
97 %

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Max. noise level
50 dB
Protection type (IP code)
IP20

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
6 x
Battery weight per cell
3230 g
Voltage
12 V
Capacity
9 Ah
Charging time
4 h
Operating time at full load
6 min
Operating time at half load
17 min

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Input cableLoad cableUSB cable
Items per sales unit
1 x

Product dimensions

Height
88 mm
Weight
27.50 kg
Width
438 mm
Length
632 mm

Package dimensions

Length
76 cm
Width
60 cm
Height
20 cm
Weight
32.30 kg
