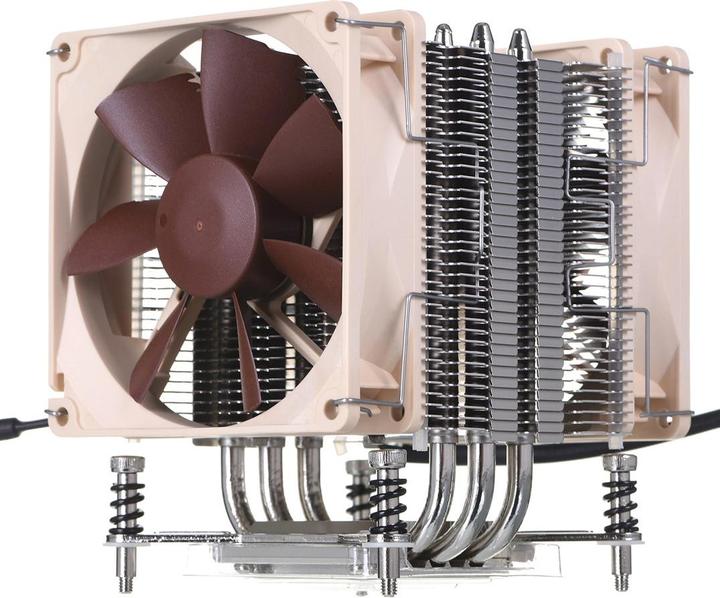

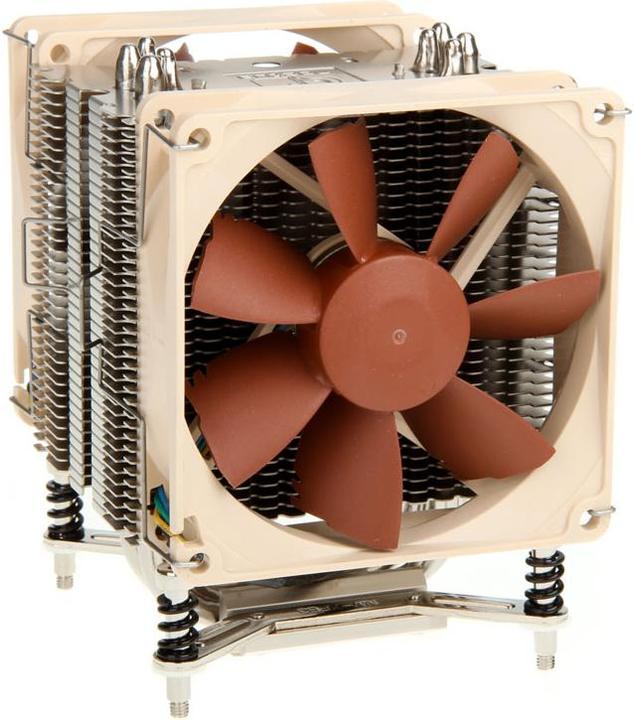

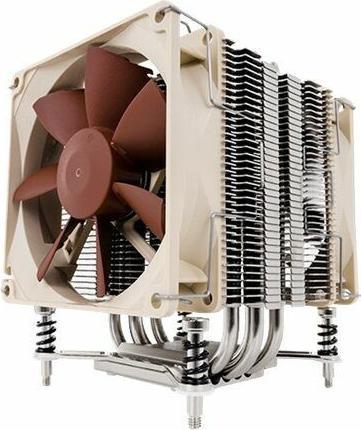

Noctua NH-U9DXi4 CPU Cooler
125 mm8 pieces in stock at supplier
Product details

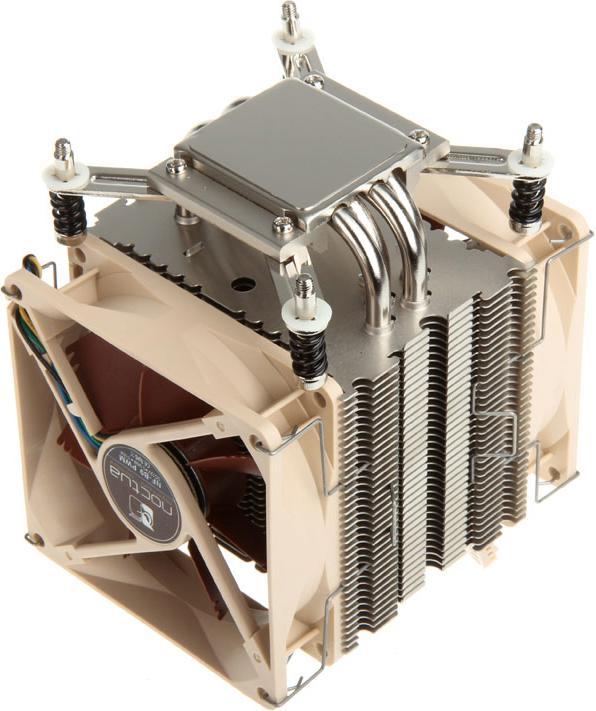

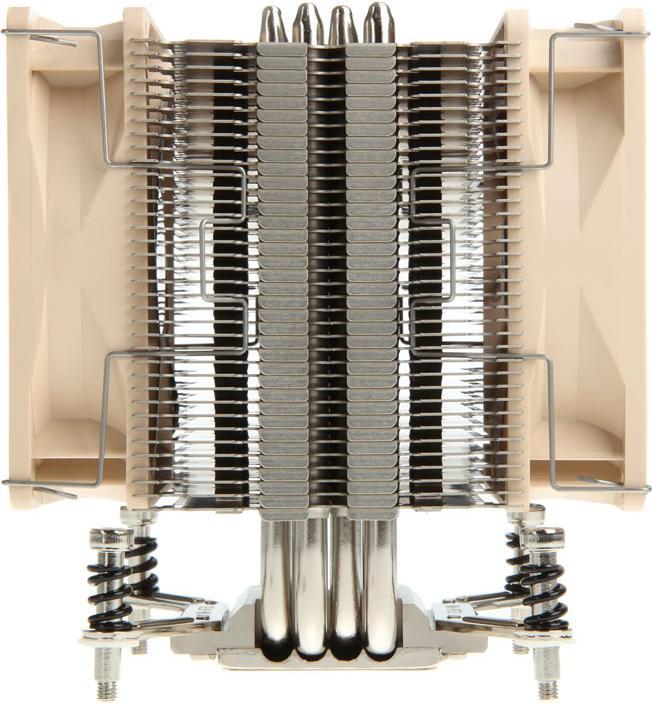

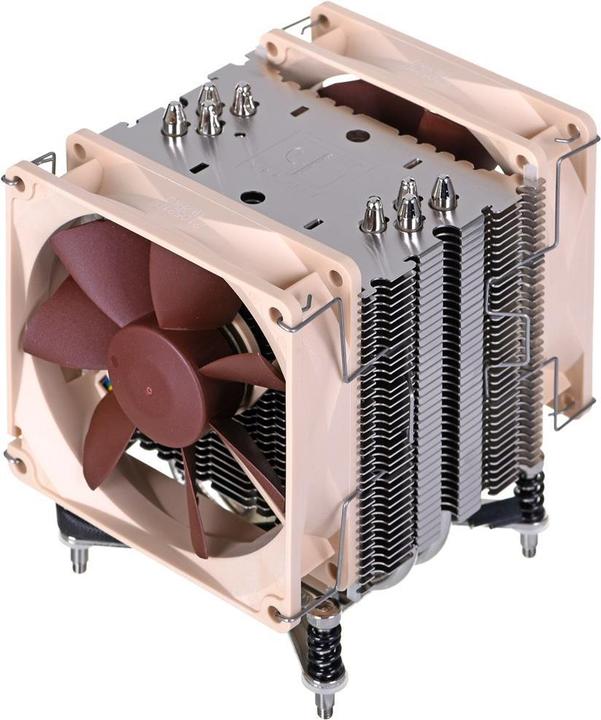

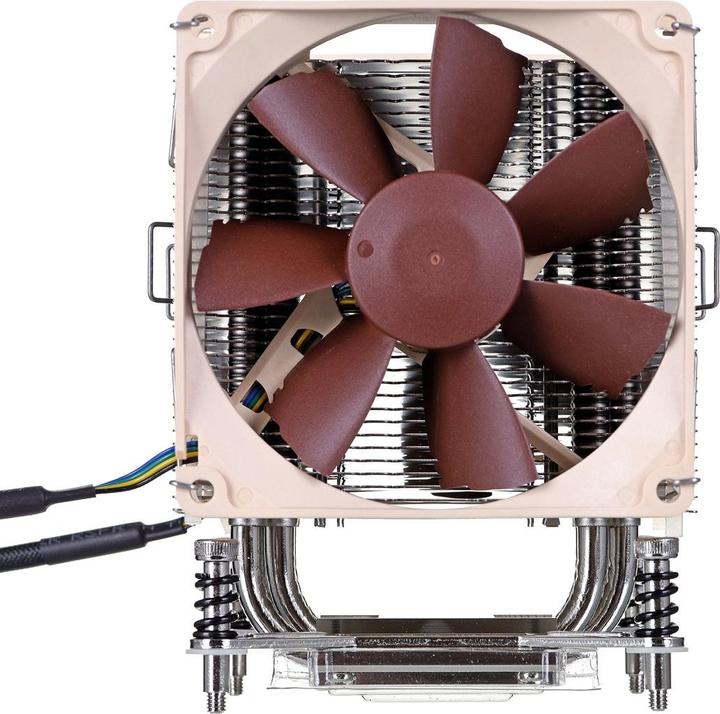

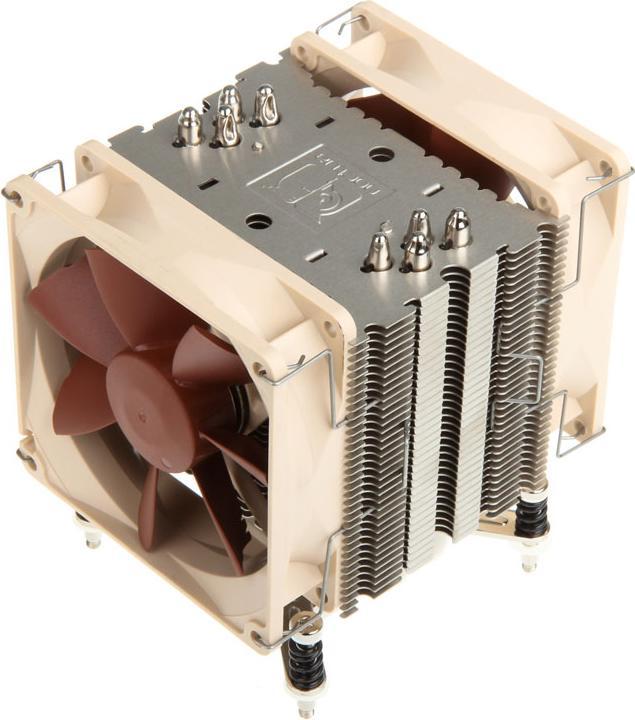

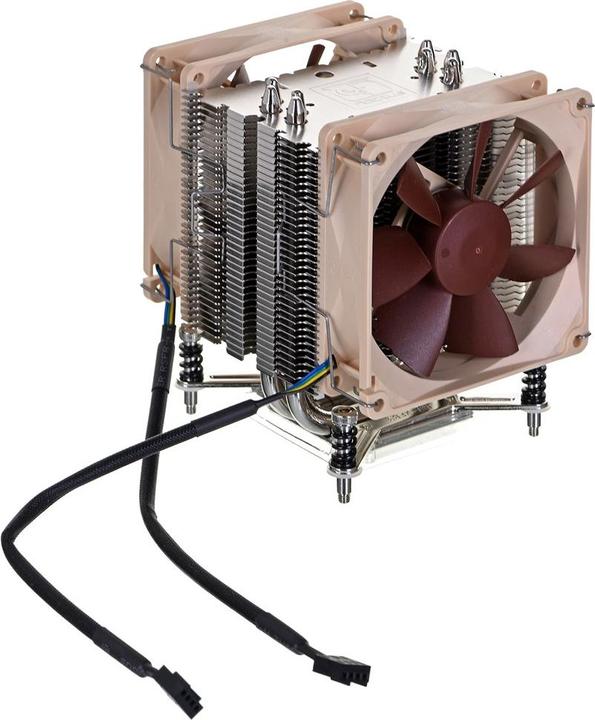

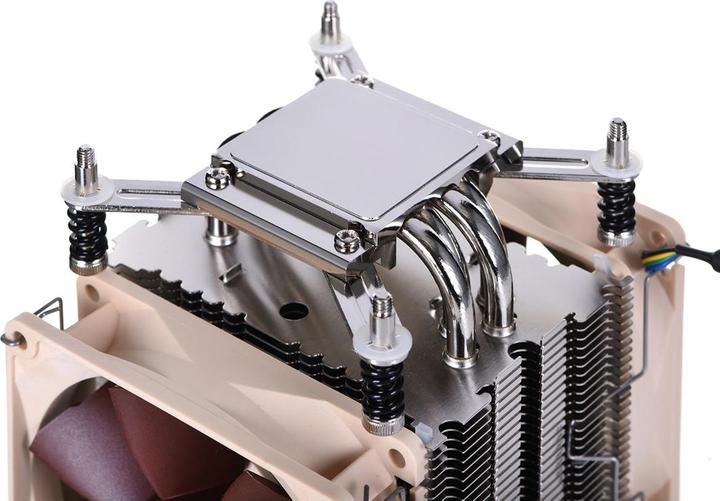

Noctua's DX series has become a standard solution for quiet high-performance cooling in the Xeon range. The latest i4 revision supports LGA2011 (both Square ILM and Narrow ILM), LGA1356, and LGA1366 based Intel Xeon systems. The 9 cm model NH-U9DX i4 comes with two of the award-winning NF-B9 premium fans with PWM for automatic speed control. With a height of 125 mm, it combines excellent cooling performance with minimal noise levels while maintaining full 4U compatibility. Together with the professional SecuFirm2 mounting system and Noctua's NT-H1 quality thermal paste, the NH-U9DX i4 forms a complete premium package for quiet cooling of Xeon workstations and servers.
Main features:
Technical details:
Type: Cooler
Suitable for: Processor
Fan diameter: 92 mm
Supported processor socket: Socket 1356, Socket 1366, Socket R (2011)
Minimum fan speed: 300 RPM
Maximum fan speed: 1600 RPM
Noise level:.
Socket | LGA 1366, LGA 2011, LGA 2011-v3, LGA 2066 |
Diameter | 92 mm |
Number of fans | 2x |
Max. TDP | 150 W |
Airflow | 64.30 m³/h |
power connector | 4-pin PWM |
Height (with fan) | 125 mm |
Item number | 12850969 |
Manufacturer | Noctua |
Category | CPU coolers |
Manufacturer No. | NH-U9DXi4 |
Release date | 5.3.2020 |
External links |
Colour | Beige |
Exact colour description | Beige, Brown |
CPU cooler design | Single Tower |
Fan type | Tower Cooler |
Socket | LGA 1366, LGA 2011, LGA 2011-v3, LGA 2066 |
Supported fan sizes | 92mm |
Number of heatpipes | 4 |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 92 mm |
Number of fans | 2x |
Max. Speed | 1600 RPM |
Max. TDP | 150 W |
Airflow | 64.30 m³/h |
Max. noise level | 17.60 dB |
LED lighting | without LED |
power connector | 4-pin PWM |
Nominal voltage | 12 V |

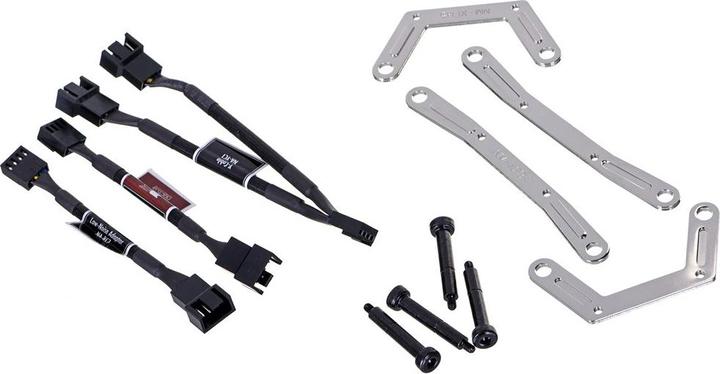

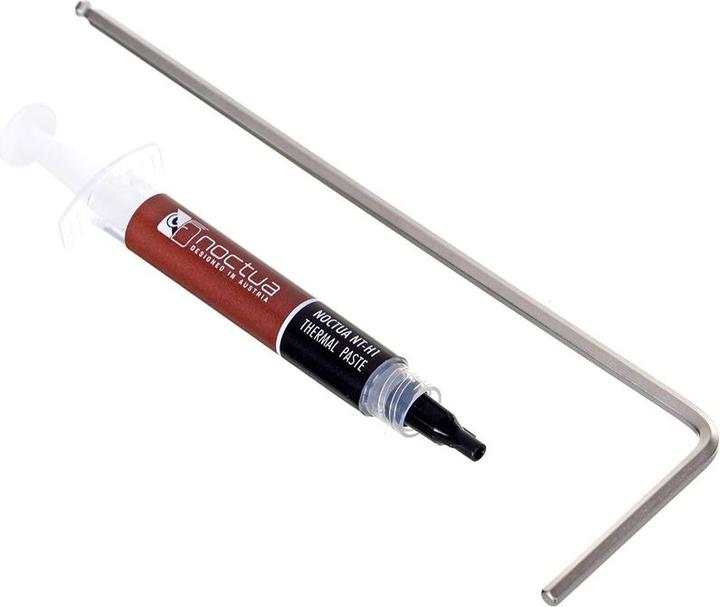

Scope of delivery | Low-Noise Adapter (L.N.A.), SecuFirm2 Mounting Kit, Thermal grease |
Country of origin | China, Germany, Taiwan |
CO₂ emissions | 16.16 kg |
Climate contribution | CHF 0.38 |
Width (with fan) | 95 mm |
Length (with fan) | 120 mm |
Height (with fan) | 125 mm |
Weight | 640 g |
Length | 21.50 cm |
Width | 17.50 cm |
Height | 13.50 cm |
Weight | 1.16 kg |
