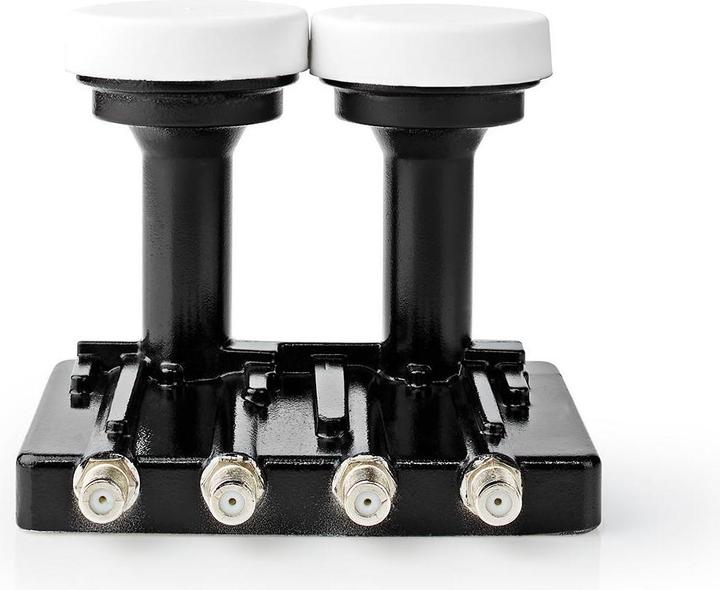

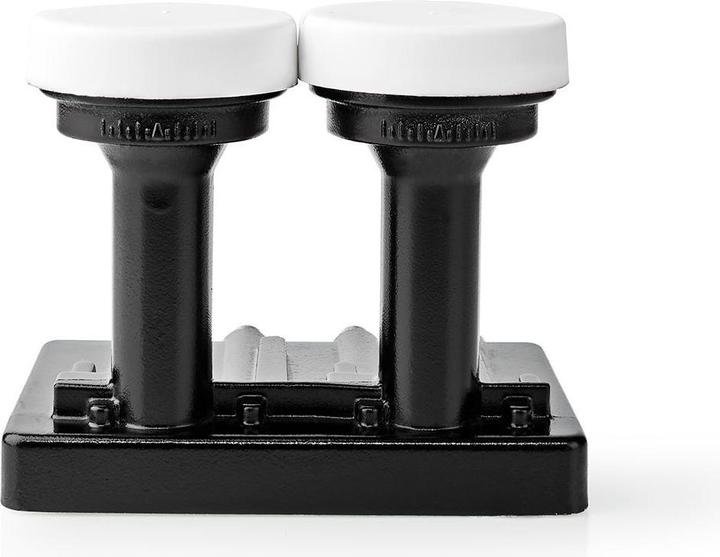

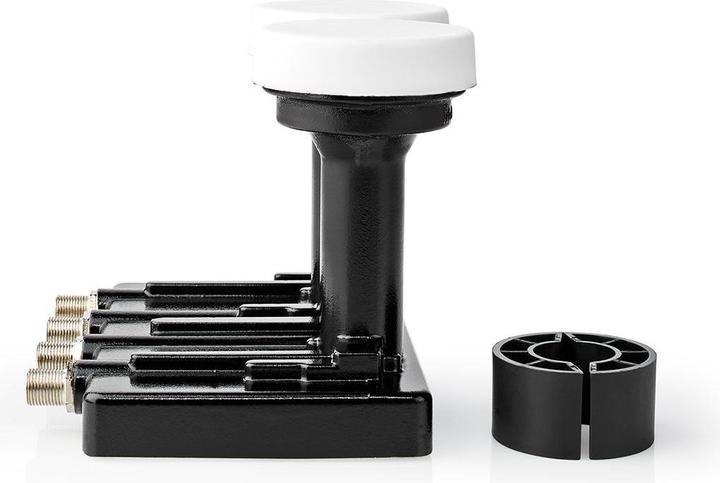

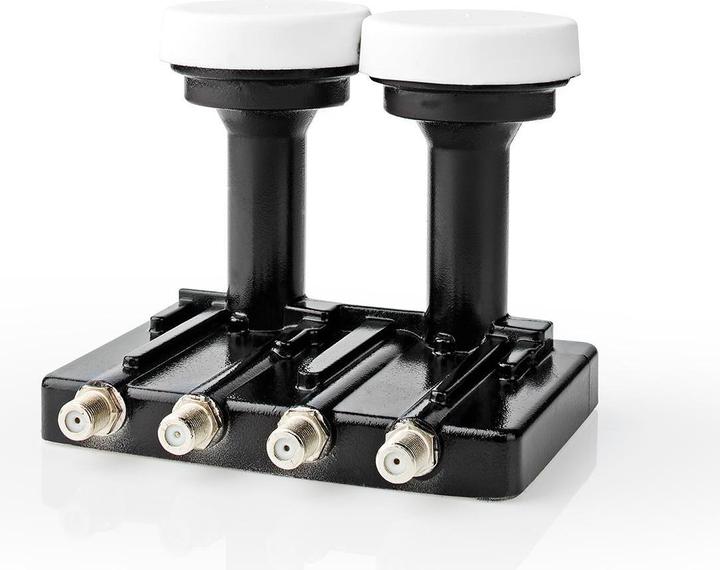

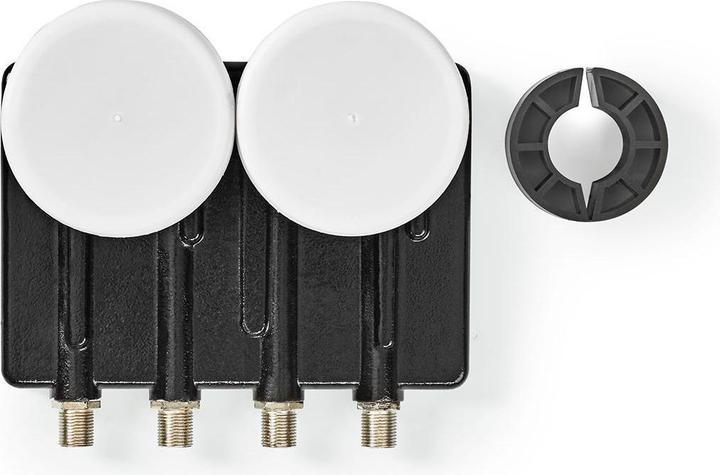

Nedis LNB Quad Monoblock 4.3 ° Output connector: 4X F-Connector Noise figure range: 0.85 dB Converse

Install this Quad Monoblock LNB 4.3 from Nedis for installations that require excellent signal strength and quality. It reduces the signal-to-noise ratio, achieving a final signal-to-noise ratio of 0.2 to 0.85 dB.

Connect the Quad Monoblock to the satellite receiver via a multiswitch. The monoblock can process 4 different signal types: vertical high and low frequencies as well as horizontal high and low frequencies.

With it, you can connect a satellite receiver to a parabolic antenna with a diameter of 80 to 90 cm.

• Number of products in the box: 1 piece
• Output level: -53 dB
• Output connection: 4x F-Connector
• Output frequency range High Band: 1,100 - 2,150 GHz
• Operating temperature range: -35 - 70 °C
• Image suppression (Min.): 40 dB
• Current consumption: 0.20 A
• Input frequency range High Band: 11.7 - 12.75 GHz
• Input frequency range Low Band: 10.7 - 11.7 GHz
• Color: White
• High Band switching: 22 kHz
• Conversion gain: 52 - 67 dB
• Cross-polarization: 20 dB
• LNB type: Quad Monoblock 4.3°
• Local oscillator frequency phase noise: -80 dB c/Hz @ 10 kHz (max.)
• Low Band switching: 0 kHz
• Material: Metal
• Suitable for: Astra3
• Polarity switching voltage Horizontal: DC 16.0 - 20.0 V
• Polarity switching voltage Vertical: DC 11.0 - 14.0 V
• Noise figure range: 0.85 dB
• Satellite accessory: LNB
• Gain flatness 26 MHz bandwidth: ± 1.0 dB.
