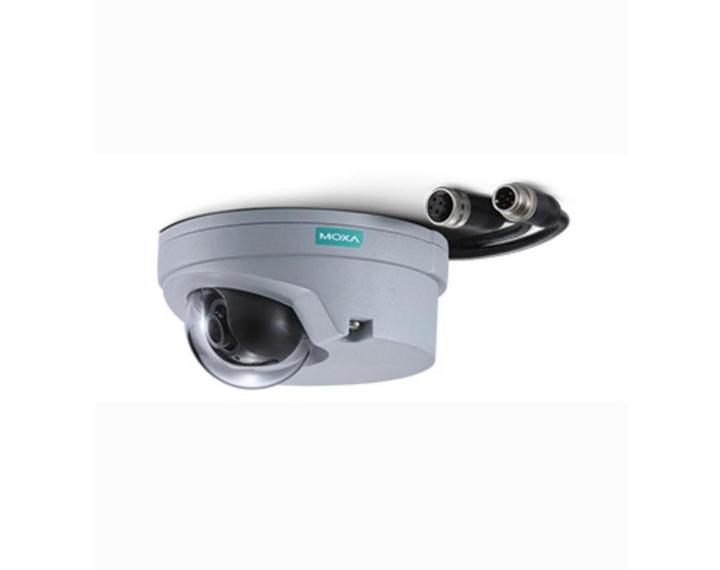

Moxa VPORT P06HC-1V42M-CT - EN 50155, HD image, cubic IP camera with M12 connector, PoE, 4.2 mm lens, -40

Ratings
BrandMore from Moxa
Delivered between Fri, 8.8. and Fri, 12.9.

Product details

Our range of IP cameras includes dome and box cameras, as well as cameras with a robust design. They fulfill parts of the EN 50155 standard and therefore offer reliable performance and excellent image quality for a variety of applications.

Key features include:

  • EN 50155 compliance
  • HD image quality
  • Cubic IP camera with M12 connection
  • PoE support
  • 4.2 mm lens
  • Operating temperature from -40 to 55°C
  • Conformal coating

Ethernet interface:

  • PoE ports (10/100BaseT(X), M12 D-coded 4-pin connector)

Ethernet software features:

  • Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Security functions:

  • Password protection at user level
  • IP address filtering
  • HTTPS encryption

Performance parameters:

  • Number of power inputs: 1
  • Source of input power: PoE (IEEE 802.3af)
  • Input current: 0.17 A @ 48 VDC

Camera features:

  • Sensor: 1/2.7-in HD progressive scan CMOS
  • Lens: f=4.2 mm, F1.8, Diagonal 87°, Horizontal 80°, Vertical 43°
  • Minimum illumination: Colour: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec.)
  • Synchronization: Internal
  • White balance: ATW/AWB
  • Electronic shutter: Auto (1/30 to 1/25000 sec.)
  • S/N ratio: Maximum 50 dB (AGC off; DNR on)
  • DNR (Digital Noise Reduction): Built-in DNR
  • WDR (Wide Dynamic Range): 110 dB
  • Flickerless control: Automatic, 50 Hz, 60 Hz modes
  • Image rotation: Flip, mirror, and 180° rotation
  • Image adjustment: Manual adjustment with saturation, sharpness, and contrast
  • AGC (automatic gain control): 2X, 4X, 8X, 16X, 32X, 64X
  • BLC (backlight compensation): High/Medium/Low

Video interface:

  • Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
  • Video output: via Ethernet
  • Video streams: 3 independent H.264 or MJPEG video streams
  • Video viewing: DynaStream™ support for automatic change of video frame rate, CBR Pro™ for good image quality for transmissions with limited bandwidth, 3 areas for data protection masks, adjustable image size.

Key specifications

Network camera type
Outdoor surveillance camera
Power supply
PoE
Lens type
Prime lens
Type of memory
Local network
Item number
46338581

General information

Manufacturer
Moxa
Category
Network camera
Manufacturer no.
VPORT P06HC-1V42M-CT
Release date
7.6.2024

Camera properties

Network camera type
Outdoor surveillance camera
Camera design
Dome camera
Camera resolution
2.70 Mpx
Viewing angle (H)
80°
Viewing angle (V)
43°
Lens type
Prime lens
Focal length
4.2 mm
Digital zoom
64 x
Image sensor type
CMOS
Refresh rate
25000 FPS
Shutter speed
1/32500 - 1/25 (50 Hz)
Remote access
App

Data storage properties

Type of memory
Local network

Application range

Application range
Network

Power supply

Power supply
PoE
PoE Standard
802.3af (PoE)
