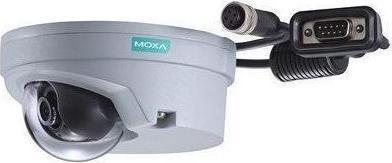

Moxa VPORT 06-2M42M-T - EN 50155, FHD, H.264MJPEG IP camera with M12 connector, 1 built-in microphone

Our range of IP cameras includes dome and box cameras, as well as cameras with a robust design. They fulfill parts of the EN 50155 standard, offering reliable performance and excellent image quality suitable for a variety of applications.

This model features an FHD, H.264/MJPEG IP camera with an M12 connector, one integrated microphone, and operates on 24 VDC with a 4.2 mm lens. It has an operating temperature range of -40 to 70 °C.

Memory:

• microSD slot SDXC

Input/Output Interface:

• Digital input channels: 1
• Digital inputs: +13 to +30 V for state 1, -30 to +1 V for state 0, max input current: 8 mA
• Connector: DB9 male

Ethernet Interface:

• 10/100BaseT(X) ports (M12 D-coded 4-pin female connector): 1

Ethernet Software Features:

• Protocols: TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, NTP client, DNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS, SIP

Security Functions:

• User-level password protection
• IP address filtering
• Encryption: HTTPS, SSH

Power Parameters:

• Number of power inputs: 1
• Input voltage: 12/24 VDC
• Input current: 0.86 A @ 12 VDC, 0.35 A @ 24 VDC
• Power connector: DB9 male

Camera Characteristics:

• Sensor: 1/3-in 1080P progressive scan CMOS
• Lens: f=4.2 mm, F1.6, diagonal 82°, horizontal 62°, vertical 34°
• Minimum illumination: Color: 0.2 lux at F1.2 (Gain High, 50 IRE, 1/30 sec)
• Synchronization: Internal
• White balance: ATW/AWB
• Electronic shutter: Auto, fixed (1/30 to 1/25000 sec)
• S/N ratio: Maximum 50 dB (AGC off; DNR on)
• DNR (digital noise reduction): Built-in 2D/3D DNR
• WDR (wide dynamic range): 100 dB
• AGC (auto gain control): 2X, 4X, 8X, 16X
• Flickerless control: Automatic, 50 Hz, 60 Hz modes
• Image rotation: Flip, mirror, 90°, 180°, 270° rotation
• Image setting: Manual tuning with saturation, sharpness, and contrast
• Camera angle: Pan: ±15°, tilt: 0° to 90° (controlled manually)

Video Interface:

• Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
• Video output: via Ethernet
• Video streams: 4 independent H.264...
