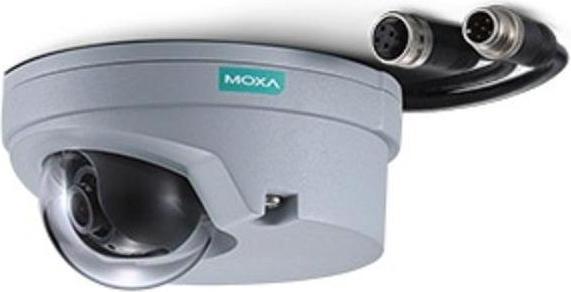

Moxa VPORT 06-2L28M - EN 50155, 1080P image, compact IP camera with M12 connector, 1 audio input, 24 V

Ratings
BrandMore from Moxa
Delivered between Sat, 4.10. and Thu, 13.11.
free shipping

Product details

Our selection of IP cameras includes dome, box, and cameras that have rugged designs. They comply with parts of the EN 50155 standard, enabling them to perform reliably and deliver superior image quality suitable for a range of applications.

EN 50155, 1080P image, compact IP camera with M12 connector, 1 audio input, 24 VDC, 2.8 mm lens, -25 to 55°C operating temperature

Memory

  • microSD Slot SDXC

Input/Output Interface

  • Digital Input Channels 1
  • Digital Inputs

+13 to +30 V for state 1

  • 30 to +1 V for state 0

Max. input current: 8 mA

  • Connector DB9 male

Ethernet Interface

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) 1

Ethernet Software Features

  • Protocols Protocols

TCP/IP
IPv4/IPv6
UDP
HTTP
RTP/RTSP
ARP
UPnP
FTP
TFTP
NTP Client
DNS
QoS
IGMP v3
ICMP
SNMPv1/v2c/v3
DHCP Opt66/67
HTTPS
SIP

Security Functions

  • Password User-level password protection
  • Filter IP address
  • Encryption

HTTPS
SSH

Power Parameters

  • No. of Power Inputs 1
  • Input Voltage 12/24 VDC
  • Input Current 0.86 A @ 12 VDC, 0.35 A @ 24 VDC
  • Power Connector DB9 male

Camera Characteristics

  • Sensor 1/3-in 1080P progressive scan CMOS
  • Lens f=2.8 mm, F2.0, Diagonal 94°, Horizontal 85°, Vertical 45°
  • Minimum Illumination Colour: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
  • Synchronisation Internal
  • White Balance ATW/AWB
  • Electronic Shutter Auto, Fixed (1/30 to 1/25000 sec)
  • S/N Ratio Maximum 50 dB (AGC off; DNR on)
  • DNR (digital noise reduction) Built-in 2D/3D DNR
  • WDR (wide dynamic range) 100 dB
  • AGC (auto gain control) 2X, 4X, 8X, 16X
  • Flickerless Control Automatic, 50 Hz, 60 Hz modes
  • Image Rotation Flip, Mirror, 90°, 180°, 270° rotation
  • Image Setting Manual tuning with saturation, sharpness, and contrast
  • Camera Angle Pan: ±15°, Tilt: 0° to 90° (controlled manually)

Video Interface

  • Video Compression H.264 (ISO/IEC 14496-10) or MJPEG
  • Video Output via Ethernet
  • Video Streams 4 independent H.264 or MJPEG...

Key specifications

Network camera type
Outdoor surveillance camera
Power supply
Electrical connection
Type of memory
Memory card
Advanced functions
Motion sensor, Night vision function, Speakers
Item number
46173359

General information

Manufacturer
Moxa
Category
Network camera
Manufacturer no.
VPORT 06-2L28M
Release date
28.5.2024

Camera properties

Network camera type
Outdoor surveillance camera
Camera design
Dome camera
Camera resolution
1080 Mpx
Focal length
2.8 mm
Image sensor type
CMOS
Refresh rate
1080 FPS
Advanced functions
Motion sensor, Night vision function, Speakers
Remote access
App

Data storage properties

Memory card type
microSD
Type of memory
Memory card

Application range

Application range
Network

Power supply

Power supply
Electrical connection
