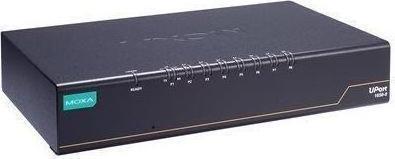

Moxa UPORT 1650-8-G2-T - USB to 8-port RS-232422485 converter, -40 to 75C operating temperature

Ratings
Delivered between Thu, 10.7. and Tue, 19.8.

Product details

Moxa's UPort USB-to-serial converters provide computers with high-performance, industrial-grade connections for up to 16 serial devices over a single USB port. A wide range of converters are available with features that include SuperSpeed USB 3.2 and Hi-Speed USB 2.0, advanced UARTs for high-end serial performance, COM port mapping, fixed-base COM functionality, and more.

This model is a USB to 8-port RS-232/422/485 converter, with an operating temperature range of -40 to 75°C.

USB Interface:

  • USB Standards: USB 3.2 Gen 1, USB 1.1/2.0 compliant
  • Speed: 5 Gbps, 480 Mbps, 12 Mbps
  • Number of USB Ports: 1 x UFP for all models, and 3 additional DFP for UPort 1650-8-G2-Hub
  • USB Connector: USB type B (UFP) for all models, and type A (DFP) for UPort 1650-8-G2-Hub

Serial Interface:

  • Connector: DB9 male
  • Number of Ports: 8
  • Serial Standards: RS-232 (UPort 1610-8-G2), RS-232/422/485 (all other models)
  • FIFO: 512 bytes
  • Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS, XON/XOFF
  • RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485: 120 ohms
  • Surge: 0.5 kV
  • Isolation: 2 kV (I models)

Serial Signals:

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Serial Software Features:

  • Windows Drivers: Windows 11, 10, 8.1, 8, and 7; Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2
  • Linux Drivers: Kernel 6.x, 5.x and 4.x
  • Mac Drivers: macOS version (Intel 64): 13, 12, 11 and 10.1x
  • Virtual Machine: VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64), VMWare ESXi (Linux kernel 4), Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
  • Arm®-based Platform Support: Linux kernel 6.x, 5.x and 4.x
  • Android API: Android 3.1.x and...

Key specifications

Item number
46449119

General information

Manufacturer
Moxa
Category
Converters
Manufacturer no.
UPORT 1650-8-G2-T
Release date
11.6.2024

Voluntary climate contribution

CO₂-Emission
Climate contribution

30-day right of return
24 Months Warranty (Bring-in)
