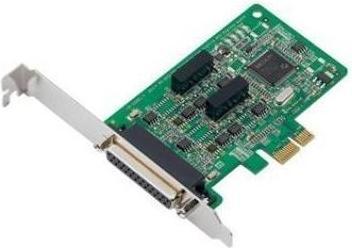

Moxa CP-132EL-I-DB9M - 2-port RS-422485 low-profile PCI Express x1 serial board with optical isolation

2-port RS-422/485 low-profile PCI Express x1 serial board with optical isolation (includes DB9 male cable)

Serial Interface

Comm. Controller: 16C550C compatible
Bus: PCI Express 1.0
Connector: DB25 female
FIFO: 128 bytes
Max. No. of Boards per PC: 8
No. of Ports: 2
Serial Standards: RS-422, RS-485
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, XON/XOFF
Isolation: 2 kV

Serial Signals

RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Serial Software Features

Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers: Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6, QNX 6

Power Parameters

Input Current: 636 mA @ 3.3 VDC

Physical Characteristics

Dimensions: 67.21 x 103.97 mm (2.65 x 4.16 in)

LED Interface

LED Indicators: Built-in Tx, Rx LEDs for each port

Environmental Limits

Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (package included): -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class B
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

Declaration

Green Product: RoHS, CRoHS, WEEE

MTBF

Time: 1,681,099 hrs
Standards: Telcordia (Bellcore) Standard TR/SR.
