Mimosa 100-00111(C6X) - C6x

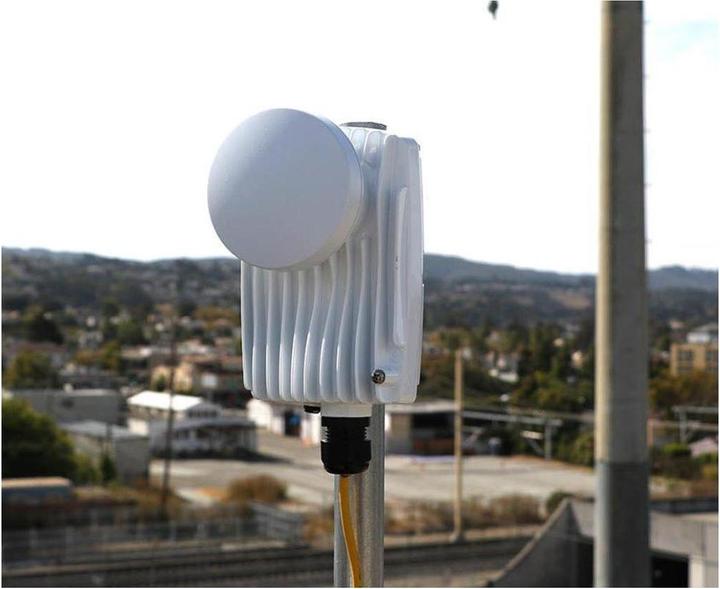

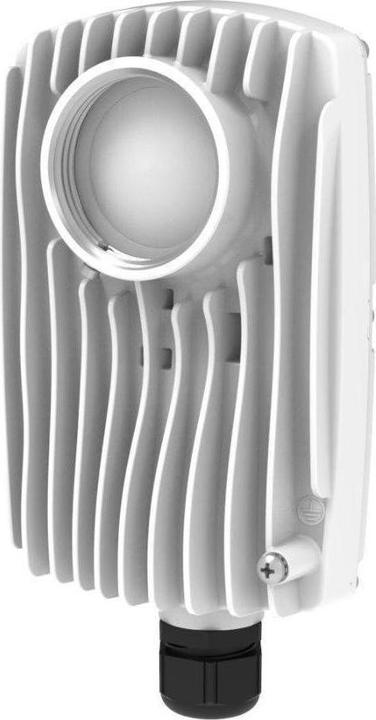

Mimosa C6x is an outdoor client unit housed in a robust casing with high resistance to environmental disturbances, rated IP67, featuring an integrated antenna with a gain of 8 dBi and the option to mount a directional antenna from a wide range (12 to 25 dBi). The device supports Wi-Fi 6E OFDMA technology (based on 802.11ax) and is also compatible with older Wi-Fi 5/6 standards. It has a 2×2 MIMO radio module with a modulation speed of 2402 Mbps at 160 MHz and can operate in the frequency band of 5150 to 6425 MHz. For network connectivity, the C6x device offers a Gigabit Ethernet port with passive PoE support from 48 to 56 V.

Key Features

• Wi-Fi 6E supports OFDMA: OFDMA reduces the impact of in-band interference across the utilized channel with significantly smaller portions of the utilized spectrum (2 MHz) compared to older OFDM solutions, where any interference affected the entire channel width.
• Supports 6 GHz channels: 5150 to 6425 MHz
• Robust aluminum housing, IP67 rating, operating temperature from -40 to +55 °C
• Supports only PtMP installation
• 2×2 MIMO, 2402 Mbps, 1024 QAM, 160 MHz
• High output power of 27 dBm
• WiFi Interop Wireless Protocol
• Passive PoE power supply (48 to 56 V)

Included in the package

• Device
• (2) Metal cable ties.
