MikroTik

MikroTik SXTsq 5 ac - RBSXTsqG-5acD with 16 dBi 5 GHz antenna, dual-chain 802.11ac wireless

The SXTsq 5 ac is a compact and lightweight 5 GHz 802.11ac outdoor wireless device with an integrated antenna, ideal for point-to-point connections or as a CPE device. The device features a 10/100/1000 Mbps Ethernet port to fully utilize the speeds offered by the 802.11ac protocol.

The SXTsq 5 ac has a 16 dBi antenna similar to the SXT 5 ac, the predecessor model from MikroTik. However, the antenna design has been improved and the physical size has been drastically reduced - the SXTsq is twice as narrow.

The weatherproof housing includes slots for directly attaching a hose clamp at three different mounting points and can be mounted on horizontal railings. There is also an easily accessible grounding connection for protection against lightning strikes.

Included in the package:

- 24 V/0.38 A power supply
- Metal ring

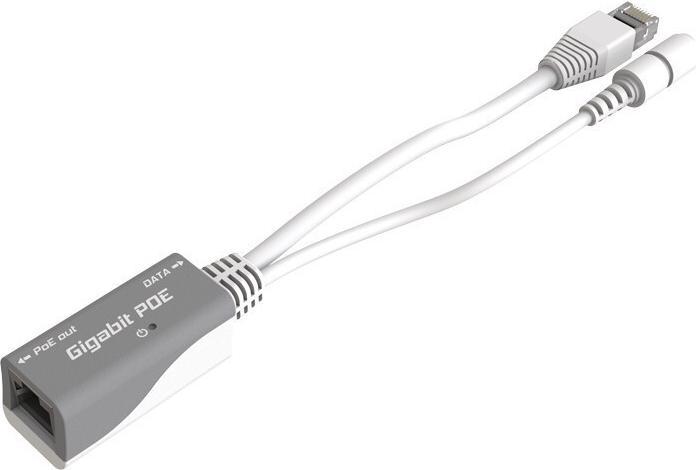

- Gigabit PoE injector

Product code: RBSXTsqG-5acD
CPU: IPQ-4018, 4 cores, nominal frequency 716 MHz
RAM size: 256 MB
Storage: 16 MB Flash
10/100/1000 Ethernet ports: 1
Wireless bands: 5 GHz radio
Wireless regulations: The specific frequency range may be limited by country-specific regulations
Operating frequency: 5150 - 5875 MHz
Protocols: 802.11a/n/ac
Chains: 2
Antenna gain: 16 dBi
Antenna beamwidth: 23°
Wireless chip model: IPQ-4018
PoE In: Yes
Supported input voltage: 10 - 30 V, passive PoE
Protection class: IP55
Dimensions:
Device: 129 x 129 x 34 mm
Packaging: 255 x 180 x 45 mm
Weight:
Device: 295 g
Packaging: 492 g
Operating temperature: -40°C to 70°C
License level: 3
Operating system: RouterOS
Max. power consumption: 7 W.

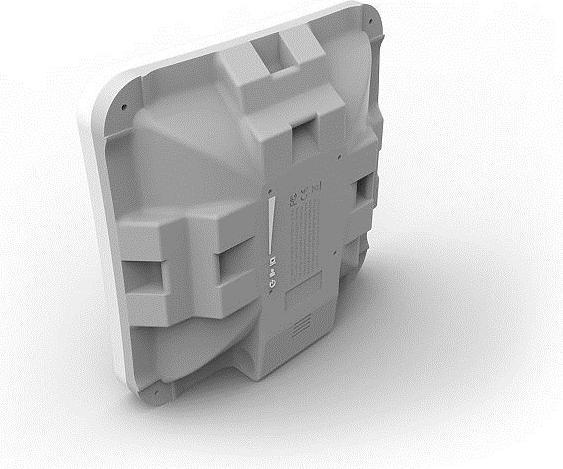

Actual product image MikroTik WLAN bridge SXTsq 5 ac (867 Mbit/s)

Key specifications

Wi-Fi standard

Wi-Fi frequency band

The frequency band of a WLAN signal describes how many 2.4GHz or 5GHz signals the router can send simultaneously.

A router that uses dual- or even tri-band technology can better distribute the load in the network and thus rarely reaches its limit in terms of WLAN speed.

PoE Standard

Power over Ethernet (PoE) is a method by which network-compatible devices can be supplied with power via the 8-core Ethernet cable.

Area of application

Number of RJ45/LAN ports

Max. port speed

Describes the maximum data transfer rate. Is not necessarily supported by all ports.
