MikroTik Rb952ui-5ac2nd

MikroTik RB952Ui-5ac2nD - hAP ac lite, dual-band, 650 MHz CPU, 64 MB RAM

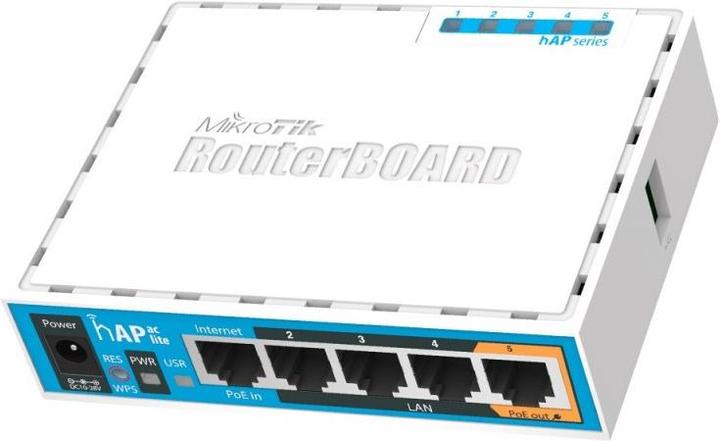

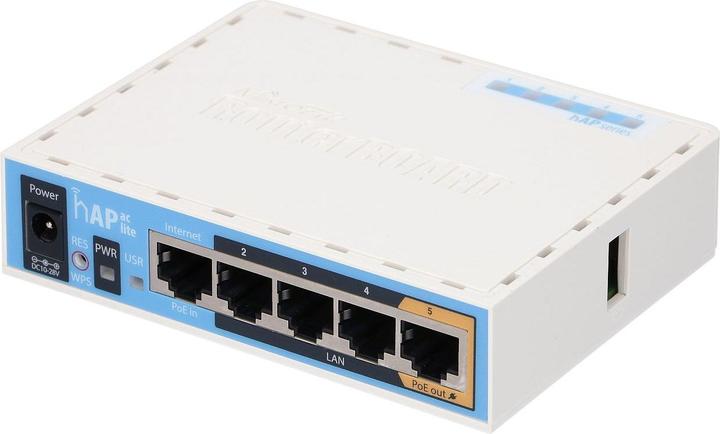

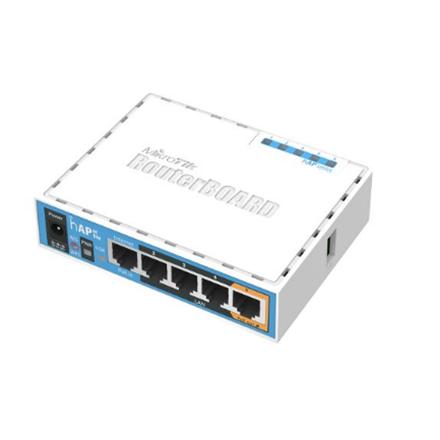

The hAP ac lite is a dual-band access point that provides simultaneous Wi-Fi coverage for the 2.4 and 5.0 GHz frequency bands. The device is very compact and blends seamlessly into any environment. It also features mounting holes for wall installation.

• Dual-band Wi-Fi 2.4 GHz
• Single-band Wi-Fi 5 GHz
• 650 MHz CPU
• 64 MB RAM

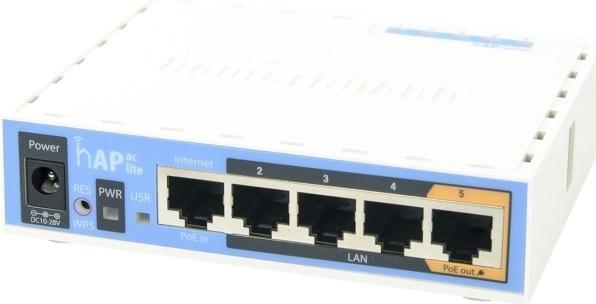

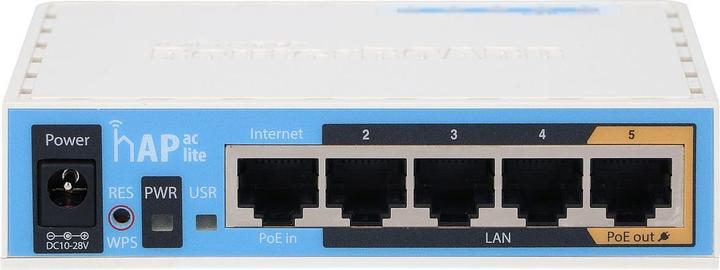

• Five 10/100 Mbps Ethernet ports
• Passive PoE output on port 5

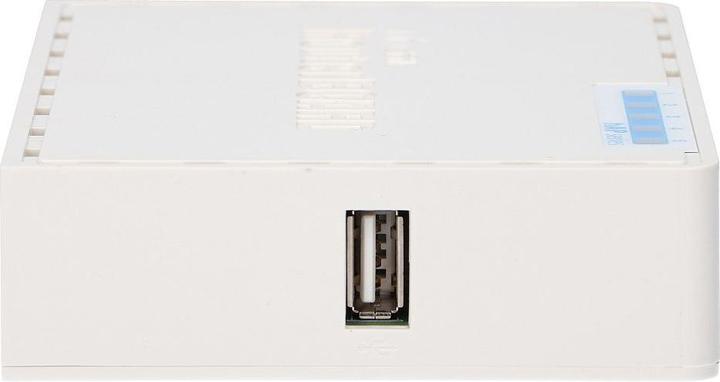

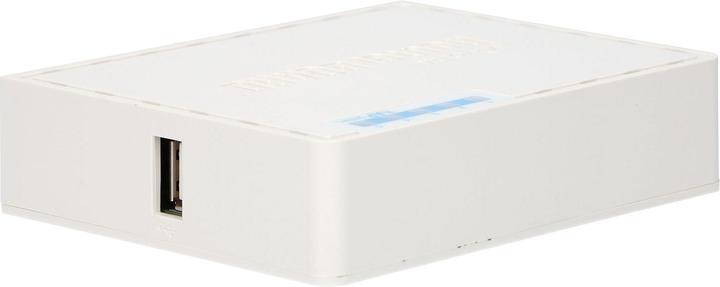

• USB port for 3G/4G modem

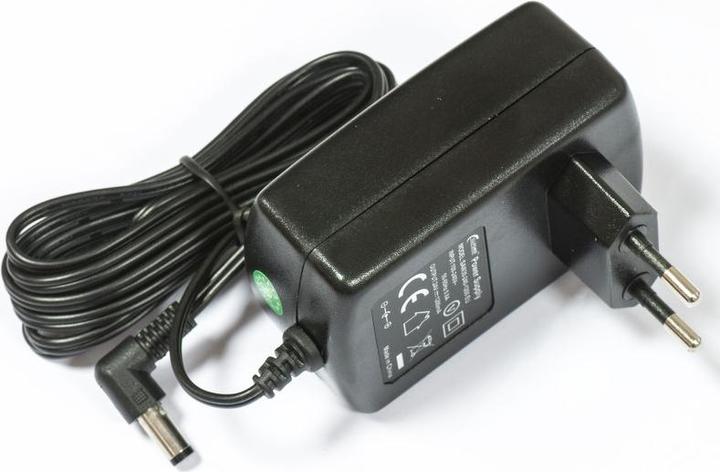

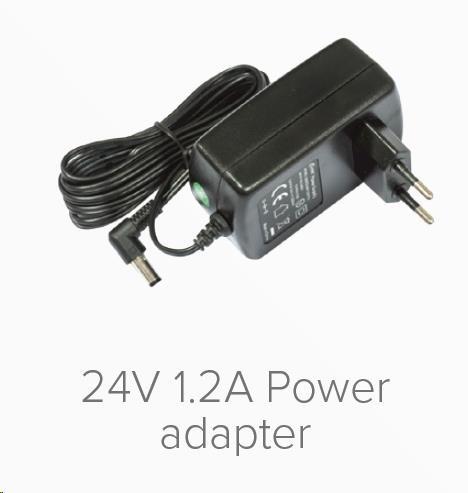

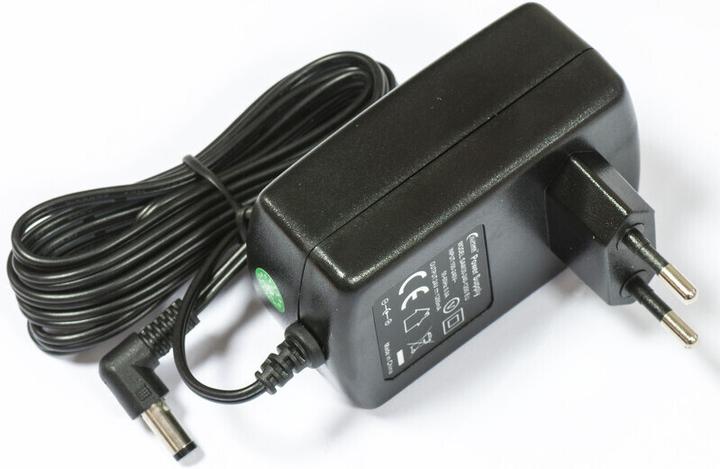

The hAP ac lite can be powered via a power cable or through passive PoE from a PoE injector. The power supply is included. The device offers a PoE output on port 5, allowing it to power other PoE-capable devices with the same voltage as supplied to the device itself. The maximum load on port 5 is 500 mA.

The hAP ac lite is preconfigured, so you only need to connect an internet and power cable before you can start.

• Product code: RB952Ui-5ac2nD
• CPU nominal frequency: 650 MHz
• Number of CPU cores: 1
• RAM size: 64 MB
• Storage type: Flash
• Storage size: 16 MB
• 10/100 Ethernet ports: 5
• Wi-Fi bands: 5 GHz, 2.4 GHz
• Operating frequency:
• International: 5150 - 5875 MHz, 2412 - 2484 MHz
• USA: 5150 - 5250 MHz, 5725 - 5850 MHz, 2412 - 2462 MHz
• Protocols:
• 802.11a/n/ac
• 802.11b/g/n
• Bands:
• Single-band
• Dual-band
• Antenna gain: 2 dBi, 1.5 dBi
• Wi-Fi chip model: QCA9887, QCA9531
• Antenna beamwidth: 360°
• PoE in: Yes
• PoE out: Yes (Ether5), 0.5 A
• Supported input voltage: 8 - 30 V (Jack or Passive PoE)

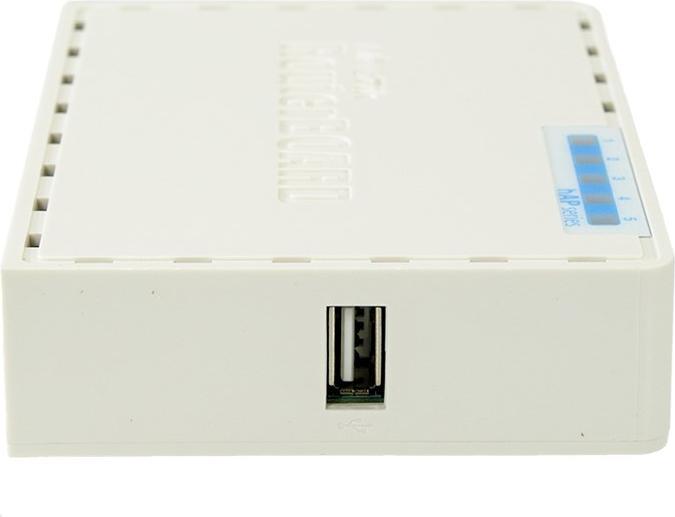

• Extras: USB 2.0 Type A port, 1 A
• Dimensions: 113 x 89 x 28 mm
• License level: 4
• Operating system: RouterOS
• CPU: QCA9531
• Max. power consumption: 7 W.
