Metz Connect NETCOM 24-Port Panel E-DAT C6A 1U modular Alu TN EDATC6A-MP24-mod

Ratings
BrandMore from Metz Connect
Delivered between Wed, 17.6. and Wed, 24.6.
More than 10 pieces in stock at supplier
free shipping

Product details

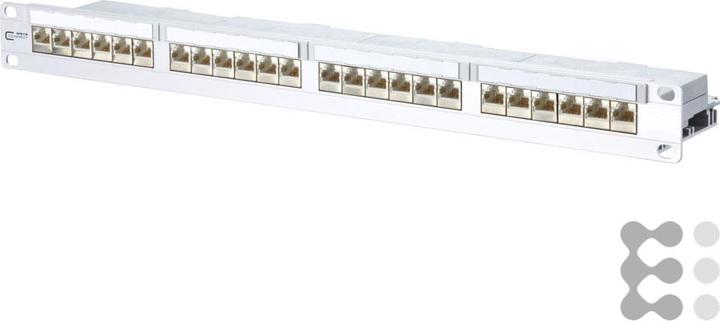

Metz Connect 24-Port Panel E-DAT C6A TN EDATC6A-MP24-mod

Manufacturer: Metz Connect
Description: 24-Port Panel E-DAT C6A 1U modular aluminum
Type: TN EDATC6A-MP24-mod
Number of sockets/couplings: 24
Suitable for number of sockets/couplings: 24
Connector type: RJ45 8(8)
Shielded: yes
Connection type: LSA
Number of rack units (U): 1
Color: white
RAL number: 9010
Mounting type: 482.6 mm (19 inch) installation

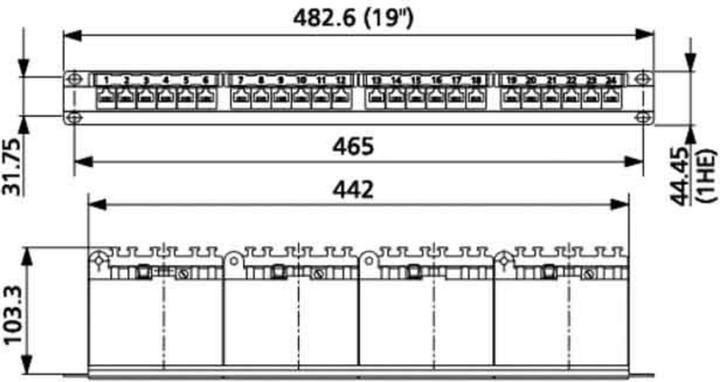

Height: 44.45 mm
Width: 482.6 mm
Depth: 103.3 mm

Additional details:
Cat.6A component testing according to ISO/IEC 11801 Ed.2.2 (FPDAM), TIA/EIA-568-C.2 (2009-08), and IEC 60603-7-51 Ed.1 (12/2008), GHMT certified, Class EA up to 500 MHz according to ISO/IEC 11801 Ed.2.2 (FPDAM), tested: component up to 600 MHz, link up to 800 MHz, for 10 GBit Ethernet (IEEE 802.3an), suitable for Power over Ethernet (PoE and PoE plus).

The carrier is made of silver anodized aluminum, with 24 individually shielded RJ45 sockets, 4 module housings made of zinc die-cast with six RJ45 sockets each. The twisted pairs can be routed to the LSA terminal without untwisting. Connection of 2- to 4-pair data cables to LSA punch-down terminals (AWG 22-24). With color coding of the wire pairs according to TIA/EIA 568A. Viewing window for included labeling inserts, additional strain relief possible using cable ties, modules are connected via grounding bar, including 30 cm grounding cable.

EAN: 4250184138631.

Key specifications

Server accessory type
19" insertion

General information

Item number
21168081
Manufacturer
Metz Connect
Category
Server accessories
Manufacturer No.
130856C-E-90
Release date
13.6.2022

Colour

Colour
White
Exact colour description
RAL number: 9010

Server accessory properties

Server accessory type
19" insertion

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
15.77 kg
Climate contribution
CHF 0.38

Scope of delivery

Items per sales unit
1x
Scope of delivery
Metz Connect 24-Port Panel E-DAT C6A TN EDATC6A-MP24-mod

Product dimensions

Length
10.33 cm
Width
48.26 cm
Height
4.45 cm
