Metz Connect METZ wall distributor

Metz Connect OpDAT Wall Distributor 1503397A24-C

Manufacturer: Metz Connect
Designation: OpDAT Wall Distributor M24xLC-Q APC OS2
Type: 1503397A24-C
Suitable for number of couplings/adapters: 30
With number of couplings/adapters: 24
With front panel: Yes
With housing: Yes
With pigtails: Yes
Fiber type: Singlemode
Fiber class: OS2
APC version: Yes
External connector type: LC-Quad
Internal connector type: LC-Quad
Color: Gray
Mounting type: Wall mounting
Height: 10.65 mm
Width: 40.5 mm
Depth: 40.5 mm

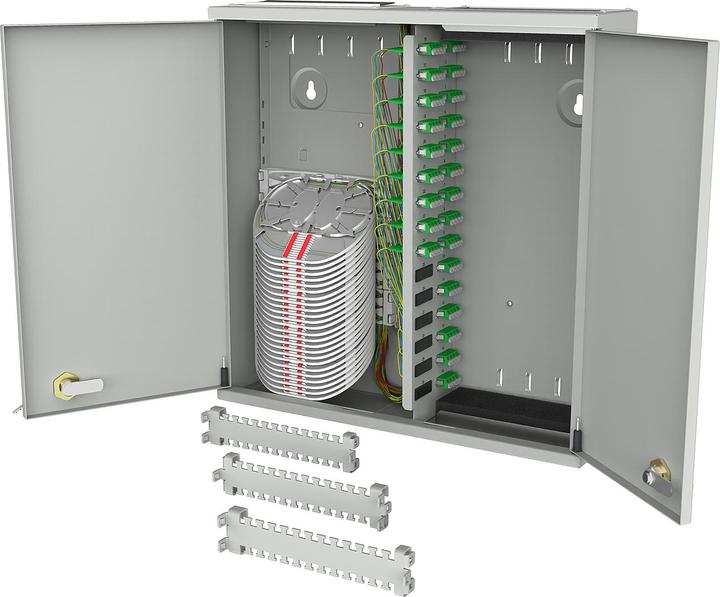

Additional details: Fiber optic distributor for use as a house distribution point in the technical room of residential buildings. It features a mounted housing with two lockable doors and two different locks to separate the network cabling from the building cabling. Available for 6, 12, 18, 24, and 30 residential units. Each housing unit can accommodate a separate splice cassette, which is prepared for splicing with 4 pigtails. The front panel is equipped with up to 30 LC-Q APC couplings, with each coupling assigned to a housing unit and a splice cassette. It includes an innovative stackable cable holder for up to 30 cables with a maximum diameter of 4.5 mm, a brush strip as a cable outlet for the building cabling, and foam for dust-free introduction of patch cables from the network side. Dimensions: 405 x 400 x 107 mm.
