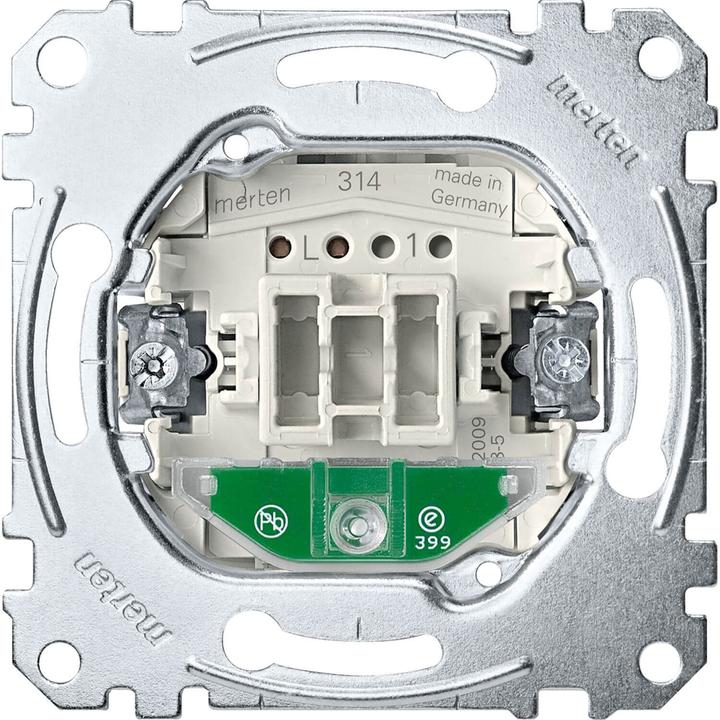

Merten Push-button single card switch 1S sep.Meldek.Licht MEG3760-000 socket outlet

Merten Push Button Card Switch MEG3760-0000

Manufacturer: Merten
Description: Push Button Card Switch 1S separate indication light
Type: MEG3760-0000
Assembly: Flush mounting insert
Design: Single pushbutton
Operation type: Rocker
Number of actuation rockers: 1
Number of poles: 1
Nominal voltage: 250 V
Rated current: 6 A
With illumination: yes
With indicator lamp: no
Feedback contact: yes
Mounting type: Surface mounted
Mounting method: Claw/screw fastening
Material: Metal/plastic
Material quality: other
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Transparent: no
Text field/labeling area: no
Printing: none
Suitable for protection class (IP): IP20
Device width: 73 mm
Device height: 73 mm
Device depth: 37 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Merten Push Button Card Switch MEG3760-0000: additional details
Features: Front-side retrofitting of QuickFlex lighting modules without switch disassembly. Front-side measurement and testing contacts accessible without switch disassembly. Quick-thread screws for claw fastening. Sunken claws with return spring. Bright zinc-plated support ring insulated to the claw. With claw and screw fastening. With plug terminals. To be completed with Card Switch System M 3156xx, 3154xx Card Switch with label field System Design MEG3854-60xx Card Switch System Flat 3153xx.

Scope of delivery: With red 230 V LED light pendant for switch/button. Design 6 A, AC 250 V.
EAN: 4042811144838.
