Merten Push-button insert

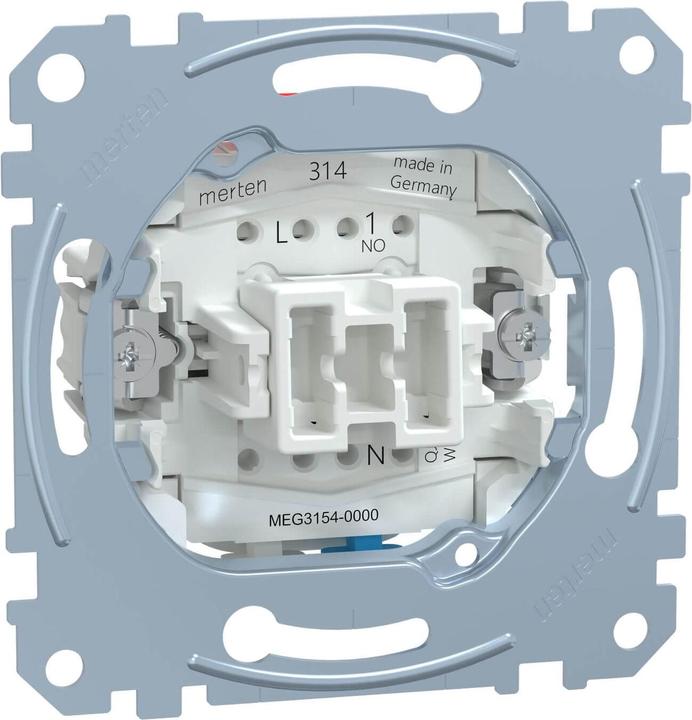

Merten Push Button Insert 1S MEG3154-0000

Manufacturer: Merten
Description: Push button insert 1S separate feedback contact 10A
Type: MEG3154-0000
Configuration: Flush mounting insert
Design: Single pushbutton
Operation type: Rocker
Number of actuating rockers: 1
Number of poles: 1
Rated voltage: 250 V
Rated current: 10 A
With lighting: no
With signal lamp: no
Feedback contact: yes
Mounting type: Surface mounted
Mounting method: Claw/screw fastening
Material: Metal/plastic
Material quality: other
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: matte
Transparent: no
Text field/labeling area: no
Printing: none
Suitable for protection class (IP): IP20
Device width: 73 mm
Device height: 73 mm
Device depth: 37 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Features: Front-side retrofitting of QuickFlex lighting modules without switch disassembly. Front-side measurement and testing contacts accessible without switch disassembly. Quick-thread screws for claw fastening. Recessed claws with return spring. High-gloss galvanized support ring insulated to the claw. With claw and screw fastening. With plug terminals. To be completed with rockers for switch/push button system M.
EAN: 4042811144708.
