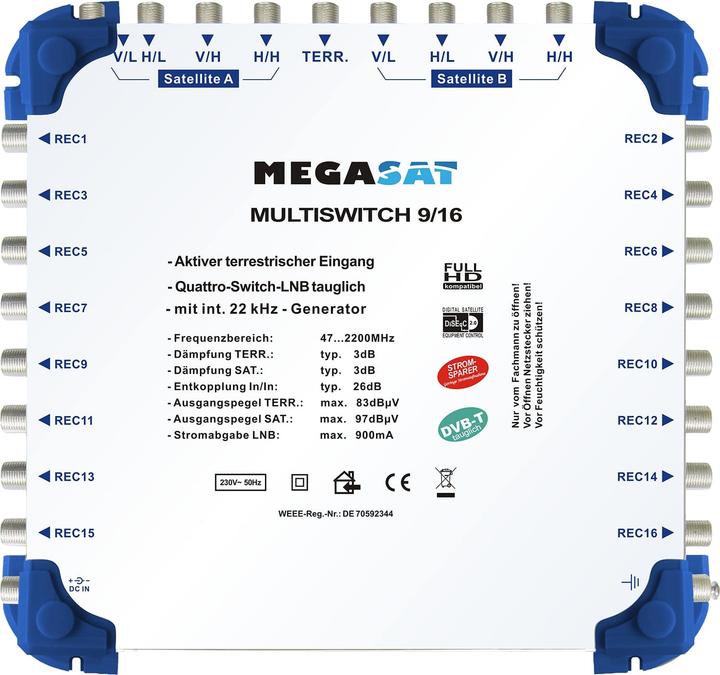

Megasat multiswitch 9/16

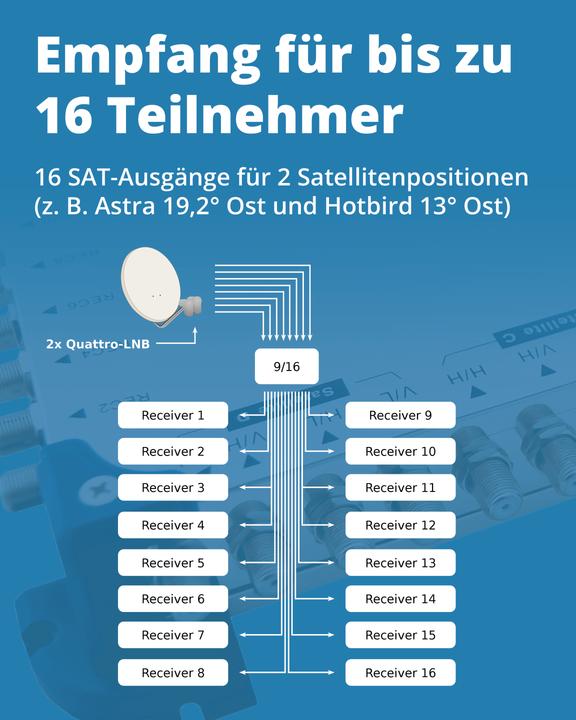

The Megasat Multiswitch 9/16 is the ideal solution for receiving two satellites and distributing the signal to up to 16 participants. With state-of-the-art technology, stable and reliable signal transmission is ensured. The multiswitch allows for the simultaneous reception of multiple satellites over a single coaxial cable and efficiently distributes the signals to the connected receivers.

The Megasat multiswitch series impresses with its high compatibility with Quad LNBs (Quattro-Switch LNBs), making it easy to integrate into existing systems without any hassle. Thanks to minimal attenuation and high decoupling of the reception levels, picture and sound quality remain at the highest level even over long cable runs. With this multiswitch, you can enjoy interference-free and flexible satellite distribution for your home or larger installations.

Technical specifications:
Frequency range DVB-S/S2: 950 – 2250 MHz
Frequency range DVB-T/T2: 47 – 862 MHz
Attenuation DVB-S/S2/S2: 3 dB
Attenuation DVB-T/T2: 3 dB
Switching isolation: 28 dB
Decoupling DVB-S/S2: 28 dB
Decoupling DVB-T/T2: 25 dB
Output level DVB-S/S2: 100 dBμV
Output level DVB-T/T2: 85 dBμV
LNB power supply: max. 1200 mA
Power supply: AC 90 ~ 260 V, DC 18 V, 47 ~ 63 Hz
Operating temperature: -20° C ~ +50° C

Inputs:
2 × DVB-S/S2 (Horizontal High)
2 × DVB-S/S2 (Horizontal Low)
2 × DVB-S/S2 (Vertical High)
2 × DVB-S/S2 (Vertical Low)
1 × DVB-T/T2
1 × DC In

Outputs:
16 × DVB-S/S2 (to receiver)

Delivery includes:
Megasat Multiswitch 9/16, power supply, user manual.
