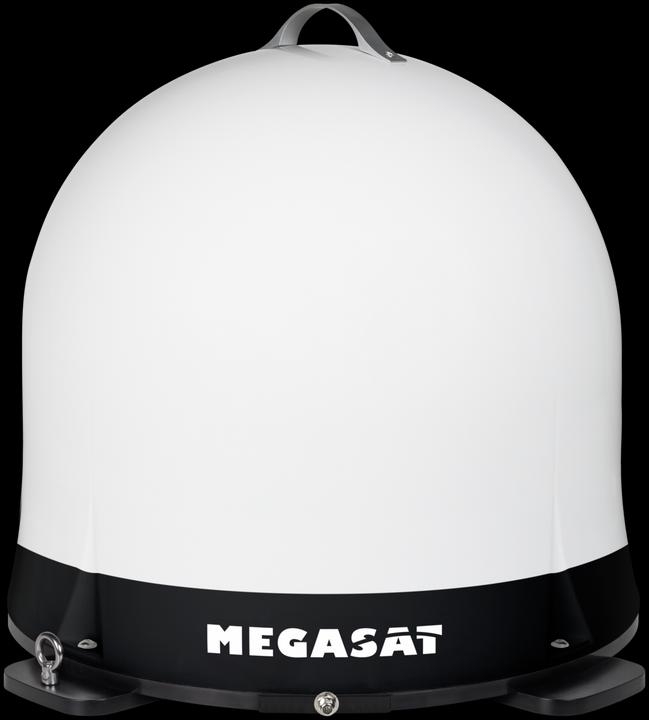

Megasat Campingman Portable ECO

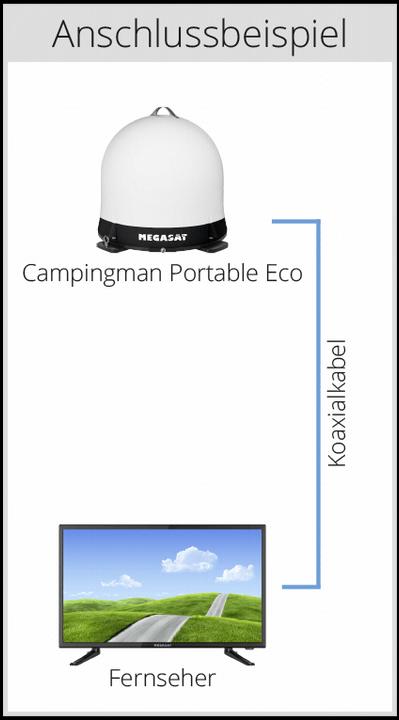

Energy saver - No external power source needed: Megasat Campingman Portable ECO. Thanks to its mobile and compact design, the antenna allows for flexible use and can be set up anywhere with a clear view of the satellite. This makes it easy to avoid trees and other obstacles. The antenna is well protected against external damage and weather influences by an elegant plastic cover. It does not require a separate control unit. The coaxial cable connects directly to the TV or receiver, which also provides power to the antenna. You simply need to turn on your TV or receiver, and the antenna will automatically search for the satellite (programmed for Astra 1).

Theft protection: Attach a suitable steel cable or chain to the metal eyelet to protect the antenna from theft.

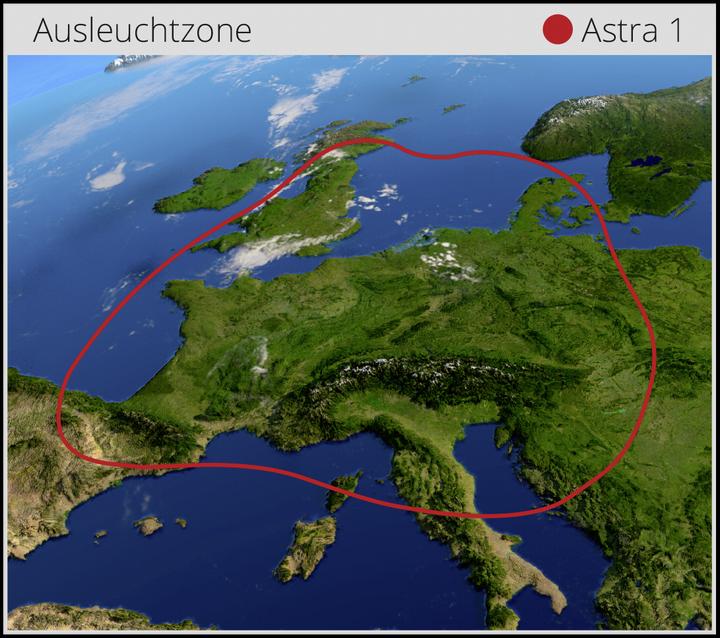

Reception range: Reception of all German television and radio programs is possible in the main holiday countries of Europe.

Technical specifications:

• Antenna type: Parabolic antenna
• LNB type: Universal LNB
• Maximum number of participants: 1
• Frequency band: Ku Band
• Input frequency range: 10.7 GHz - 12.75 GHz
• Polarization: V/H
• Signal gain: 31 dBi @ 12.7 GHz
• Minimum EIRP (illuminated zone): 51 dBW
• Elevation (tilt): 23° - 43°
• Azimuth (rotation): 360°
• 1.5-axis DC motor
• Temperature range: -20° C - 70° C
• Dish size: 380 (Ø)

Programmed satellites:

• Astra 1 (19.2° East).
