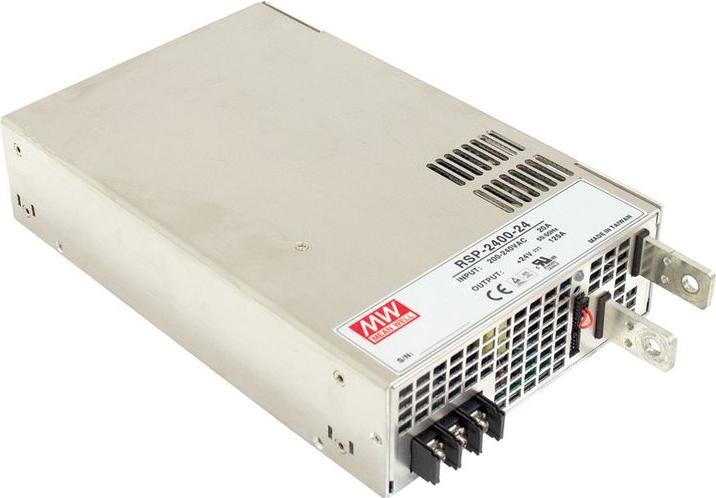

MeanWell Power Supply,Switch Mode,24V,100A,2400W

Output voltage: 24V DC
Output current: 100A
Rated power: 2.4kW
Input voltage: 180 to 264V AC, 254 to 370V DC
Mounting type: Enclosure mounted
Enclosure type: Closed
Length: 278mm
Width: 177.8mm
Depth: 63.5mm
Hum and noise voltage: 150mV ss
Load regulation: ±0.5%
Mains regulation: ±0.5%
Temperature min: -20°C
Temperature max: +70°C
Operating time: 106700h

This is a UL60950-1, EN60950-1 compliant RSP-2400 series single output power supply. It features an AC input range of 180 to 264V AC with active current peak limiting and high efficiency of up to 91%. The integrated active PFC function has a power factor greater than 0.95. It includes protection against short circuit, overload, overvoltage, overtemperature, and fan alarm. The unit is forced ventilated by an integrated DC fan with speed control. The output voltage can be set between 20 to 110% of the rated output voltage, providing high power density of 12.5 W/inch. Current sharing is possible for up to 2 units. An alarm signal output is available (relay contact and TTL signal), along with an integrated 12V/0.1A auxiliary output for remote control. It also features integrated on/off control with remote control and integrated remote sensing.
