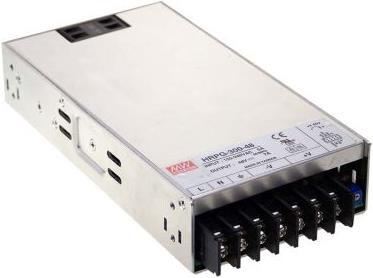

MeanWell Power Supply,Switch Mode,15V,22A,330W

Output voltage = 15V dc
Output current = 22A
Nominal power = 330W
Input voltage = 120 → 370 V dc, 85 → 264 V ac
Mounting type = Housing mounting
Housing type = Closed
Length = 199mm
width = 105mm
depth = 41mm
Hum and interference voltage = 150mV ss
Load balancing = ±0.5%.
Network balancing = ±0.3%
Temperature min. = -40°C
Temperature max. = +70°C
Operating time = 176000h

UL60950-1, TÜV, EN60950-1. UL/cUL compliant, TÜV, CB. Performance reduction above 50 °C MTBF according to MIL-HDBK-217F. Series HRPG-300, single output power supply with PFC function. High efficiency, long life and high reliability Zero load power consumption ;0.5 W Integrated active PFC function Integrated constant current limiting Integrated cooling fan On/Off control Integrated DC OK signal Integrated remote sensing Integrated on/off switching with remote control Protection against short circuit, overload, overvoltage and overtemperature Resists for 5 seconds Input current surges of 300 Vac 1HE, flat case, 41 mm power factor improvement to EN61000-3-2,-3 EMC to EN 55022 Class B. 41 mm power factor improvement to EN61000-3-2,-3 EMC to EN 55022 Class B. 0.5 W Integrated active PFC function Integrated constant current limitation Integrated cooling fan On/Off control Integrated DC OK signal Integrated remote sensing Integrated on/Off switching with remote control Protection against short circuit, overload, overtemperature and overvoltage Resists for 5 seconds Input current surges of 300 Vac 1HE, flat case, 41 mm power factor improvement to EN61000-3-2,-3 EMC to EN 55022 Class B.
