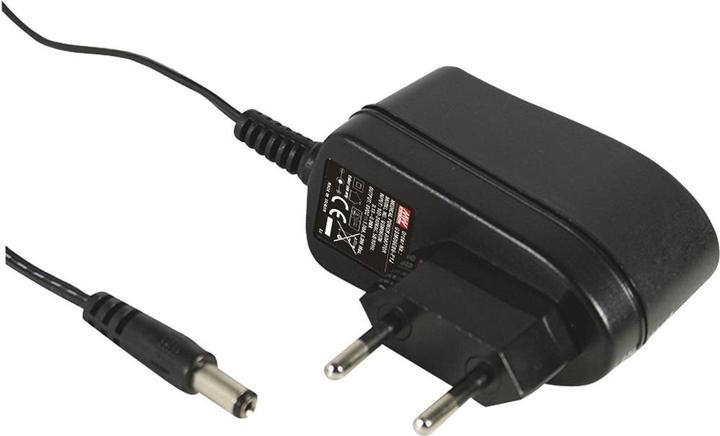

MeanWell Power Adapter Euro Plug In 12V 6W

Input voltage: 120 to 370 V dc, 85 to 264 V ac
Output voltage: 12 V dc
Output current: 0 to 500 mA
Plug type: 2-pole Euro
Rated power: 6 W
Type: Switching power supplies
Number of outputs: 1
Length: 32 mm
Cable length: 1.22 m
Ripple and noise voltage: 100 mV ss
Medical approval: Yes
Depth: 42.5 mm

The plug-in power supply from the GMS06E series by Mean Well is a highly reliable solution for medical purposes. The series features a 2-pole European standard plug for an input range of 85 V ac to 264 V ac. The GMS06E series offers fixed outputs ranging from 5 V dc to 24 V dc, designed for a variety of medical devices. It has been developed to meet international medical 2*MOPP standards and provides extremely low leakage current. The GMS06E series is also efficient, achieving an efficiency of up to 82% with an extremely low power consumption of under 0.3 W in no-load operation. Additionally, it has been designed in accordance with the latest Level V energy regulations. Mean Well has integrated a "Supreme" function into the GMS06E series, which saves energy in both operating and standby modes.

Features and benefits:

• 2-pole Euro plug
• Medical approval
• Meets Level V efficiency
• Universal AC input for full range
• Class II power supply (no earth contact)

Typical applications include:

• Blood glucose and blood pressure monitors
• Nebulizers
• Inhalers
• Portable medical devices.
