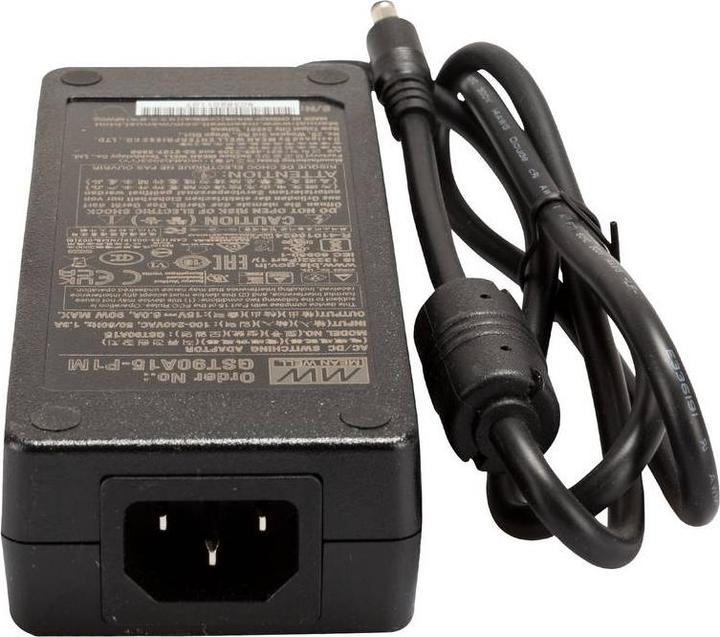

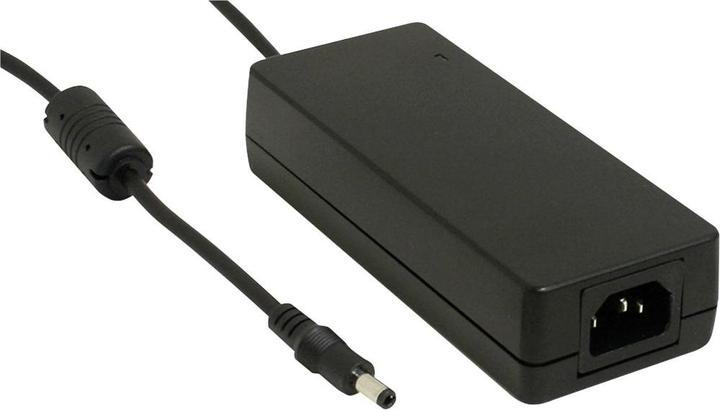

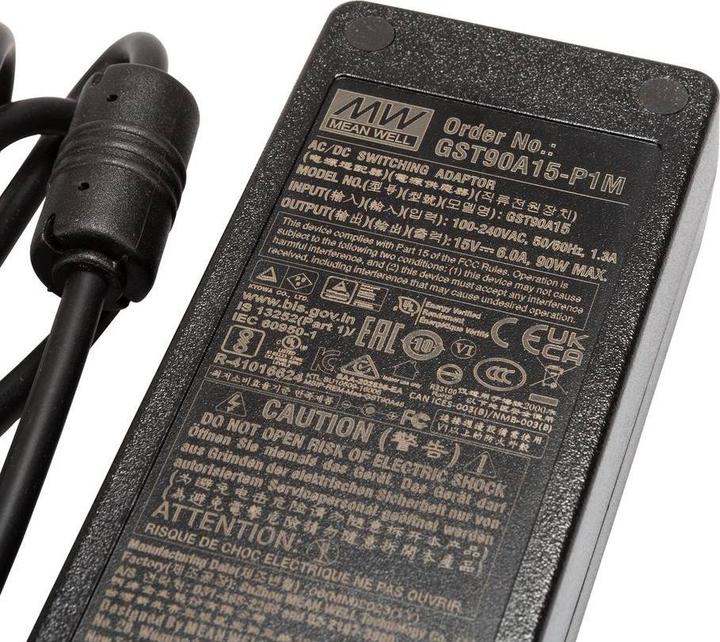

MeanWell Power Adapter Desk Top C14 15V ErP 90W

Input voltage: 127 to 370 V DC, 90 to 264 V AC
Output nominal voltage: 15 V
Output current range: 6 A
Output nominal power: 90 W
Input connection: IEC320-C14
Output connection type: P1J
Number of outputs: 1
Ripple and noise voltage: 150 mV ss
Input regulation range: ±1 %
Load regulation range: ±5 %
Operating time: 348.7 kH

Certifications: UL60950-1, TÜV EN60950-1, BSMI CNS14336, CCC GB4943, J60950-1.

The Meanwell 90 W ErP - GST90A series switched desktop power supply is a green 90 W desktop adapter. This Class I desktop power supply features a very low power consumption of less than 0.15 W in no-load operation and achieves up to 91 % efficiency, making it an energy-saving alternative. The GST90 is housed in a flame-retardant plastic enclosure according to 94V-0 to minimize the risk of electric shock.

This power supply meets Energy Efficiency Class VI and offers an LED indicator as well as protection against short circuit, overload, and overvoltage. The GST90 guarantees safety and reliability and is ideal for applications such as consumer electronics, telecommunications equipment, office facilities, and industrial equipment.

It features a universal AC input, is 3-phase, and has an IEC320-C14 connection. The fully encapsulated plastic housing provides additional safety. The LED signal light indicates the operating status, and the power consumption at no load is less than 0.15 W.
