MDT Pushbutton interface

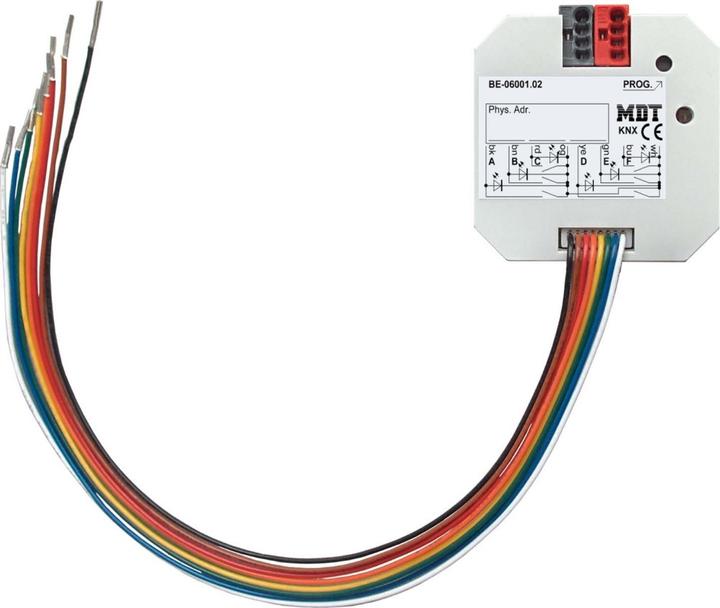

MDT Technologies Push Button Interface 6-fold BE-06001.02

Manufacturer: MDT Technologies
Description: 6-fold push button interface, potential-free
Type: BE-06001.02
Bus System KNX: Yes
Bus System KNX Wireless: No
Bus System Wireless Bus: No
Bus System LON: No
Bus System Powernet: No
Other Bus Systems: None
Bidirectional Wireless: No
Mounting Type: Flush-mounted
With Bus Coupler: Yes
Bus Module Removable: No
Control LED: Yes
With LED Display: No
Number of Inputs: 6
Type of Input Voltage: Pulsating
Protection Class (IP): IP20
Min. Installation Depth of Device Box: 35 mm

Further Details:
Push button interface / 6-fold push button interface, flush-mounted, potential-free design. Designed for connecting potential-free contacts or LEDs. For installation in a switch box, maximum cable length 5 m. Suitable for connecting push buttons, switches, and window contacts. Each input can be configured as an output for 1.5 mA LEDs (low current). Features a new multi-press function that sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra-long button press. Contains 4 integrated logic modules for evaluating inputs (e.g., window closed or send second object). Supports operation with normally open or normally closed contacts, with adjustable button press duration. Offers dimmer and shutter functions for single and dual button operation. Sending values, forced operation, and switching commands are adjustable. Supports button activation with short/long button presses and 2 objects. Integrated pulse and switch counters. Cyclic sending is adjustable. For installation in the switch box (connection cable length: 22 cm).

Dimensions (W x H x D): 41 mm x 41 mm x 12 mm. Integrated bus coupler.
EAN: 4251916110062.
