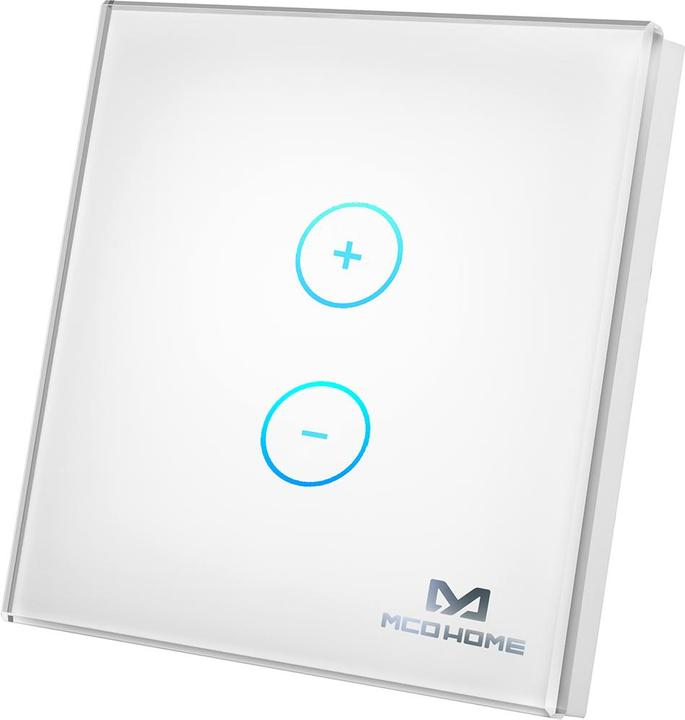

MCO Home Touch panel dimmer

Presentation

The MH-DT411-EU switch from the manufacturer MCOHome allows you to vary the connected load, either manually as a classic switch or remotely via the wireless Z-Wave protocol. The glass surface and design of this switch give your interiors a modern decor style.

This switch can be integrated into the Z-Wave network to be controlled later via a controller or a Z-Wave remote control. The switch supports any dimmer variations (Leading Edge and Trailing Edge) and automatically detects the type of lighting to select the correct dimming mode.

Furthermore, this switch allows for monitoring of power consumption.

The MH-DT411-EU switch supports connection controls (Group 1). This enables connections with up to 5 additional peripheral devices to be made, allowing them to be manually controlled via the switch or the Z-Wave controller.

Each individual Z-Wave module works with the other modules as a wireless repeater to ensure complete coverage of your living spaces.

Features

• Remote control of a lamp or fan
• Installation in place of an existing switch
• ON/OFF/Dimmer function
• Compatible with Leading Edge and Trailing Edge
• Power consumption monitoring
• Support for connection controls (Group 1 and Group 2)
• Local load control
• Presence of two inputs for additional switches
• Status LED
• Glass surface, modern design
• Touch buttons

Technical Specifications

• Module type: Z-Wave receiver
• Color: White
• Power supply: 230 V, 50 Hz
• Wiring: 2 or 3 wires
• Maximum power: 200 W
• Frequency: 868.42 MHz
• Range: up to 30 m
• Dimensions: 86 x 86 x 43 mm
• Display: blue LED.
