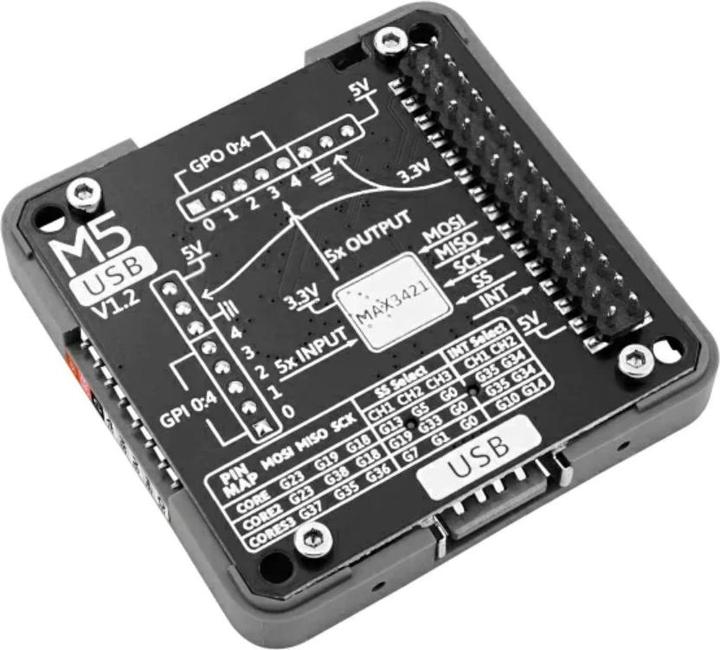

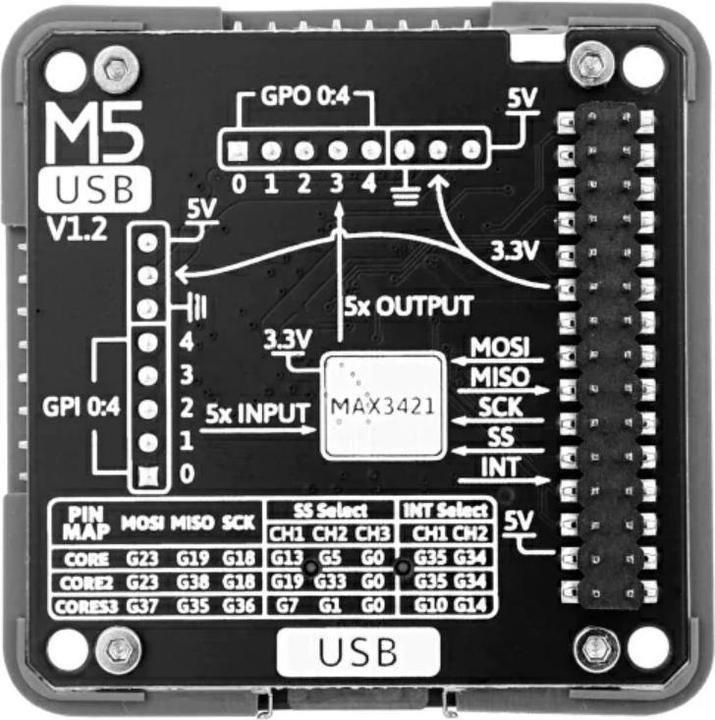

M5Stack USB module MAX3421E v1.2

Experience advanced connectivity with the M5Stack USB Module MAX3421E v1.2, an essential driver module for all your M5Stack projects. This module utilizes the advanced MAX3421E chip and enables both host and peripheral functions via a standard USB interface. It supports a wide range of USB devices and operating systems and connects to your system via SPI communication. The board is equipped with two DIP switches to adapt to various M5 series hosts and additionally offers pins for controlling external devices or querying status. With a battery holder included, it enhances flexibility and practical applicability for smart home applications, industrial controls, consumer electronics, medical devices, as well as educational and research projects.

Features:

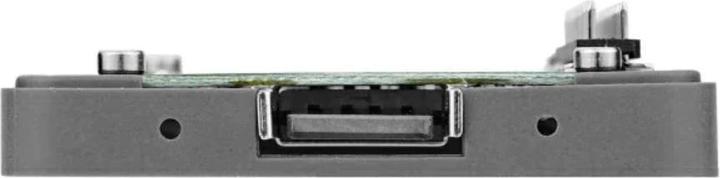

• Standard USB 2.0 interface.
• Supports SPI communication protocol.

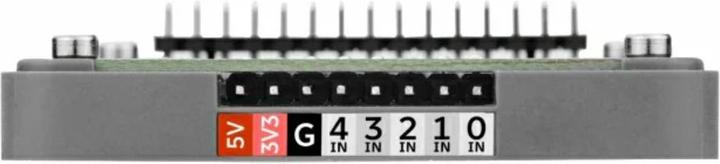

• GPIO pin expansion for 5 inputs and 5 outputs.
• Integrated lithium battery holder.
• Switches for adaptation to different hosts.

Application Examples:

• Create a USB keylogger for security monitoring.
• Read and write USB drives for data-intensive applications.
• Integrate the module into smart home systems to control and monitor USB-based devices.
• Use it in educational projects to teach students about USB communication and microcontroller programming.
• Implement the module in medical technology to control devices via USB interfaces.

Technical Specifications:

• Manufacturer: M5Stack
• Manufacturer SKU: M020-V12
• Chip: MAX3421E
• Supported USB Standard: USB 2.0
• Interface Type: SPI
• Operating Temperature: 0-40°C
• Dimensions: 54.2 x 54.2 x 12.8mm
• Weight: 21.1g

Package Contents:
1x M5Stack USB Module MAX3421E v1.2.
