LevelOne Switch 10Port Gigabit PoE DIN-Rail,-40°C to 75°C

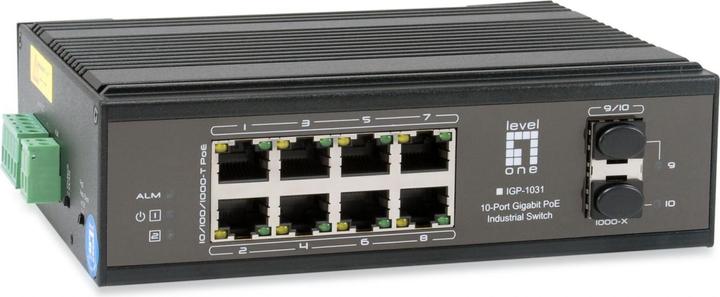

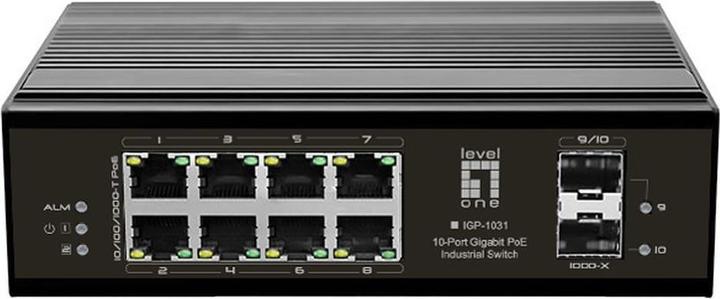

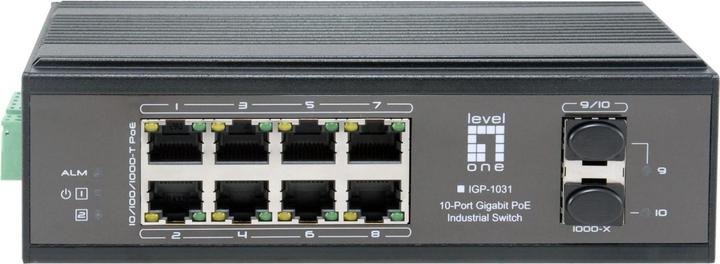

LevelOne IGP-1031 Industrial 10-Port Gigabit PoE Switch

The LevelOne IGP-1031 industrial Ethernet switch features 8 10/100/1000Base PoE ports and 2 Gigabit SFP ports for a high-speed network in mission-critical environments. The switch can be easily mounted on a standard DIN rail and installed in a control cabinet. The clearly visible status LEDs allow for easy monitoring of port activity. Additionally, the SFP slots support pluggable modules, giving you the flexibility to choose from a variety of transceivers. The switch acts as Power Sourcing Equipment (PSE) and fully complies with the IEEE 802.3at PoE standard, with a maximum power budget of 30 W per port. Another advantage is that it eliminates the need for electrical wiring and reduces the number of UPS systems required. Furthermore, it is compatible with PD devices according to IEEE802.3af.

Features:

• 10/100/1000Mbps transmission speed
• Connections: 8x Gigabit ports (integrated PoE ports) and 2 Gigabit SFP slots
• Transmission range of up to 250m at a data rate of 10Mbit/s
• Supports VLAN based on various policies
• 6KV surge protection level at each port
• Protection against surges and static charges
• Color: black
• Total PoE budget: 240 W
• Fanless design
• MAC address table: 8K
• Standards:
• IEEE 802.3 10-BASE-T, Ethernet
• IEEE 802.3u 100-BASE-TX, Fast Ethernet
• IEEE 802.3ab 1000Base-T Gigabit Ethernet
• IEEE 802.3z 1000Base-X Gigabit Ethernet
• IEEE802.3x Flow Control and Back Pressure
• IEEE802.3af for PoE
• IEEE802.3at for PoE+

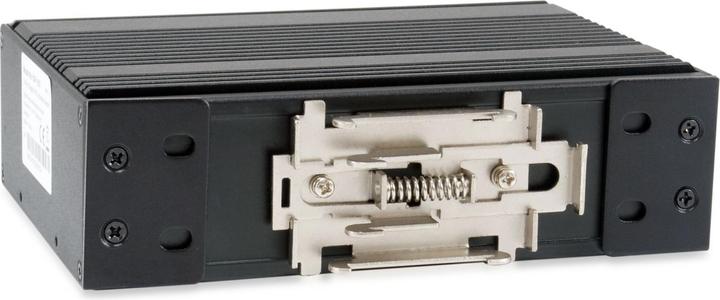

• Mounting: DIN rail mount
• Dimensions: 165 x 114 x 50 mm
• Weight: 1.0 kg.
