LevelOne POR-0202 2-Port PoE-Plus Repeater

LevelOne POR-0202, 2-Port PoE Repeater

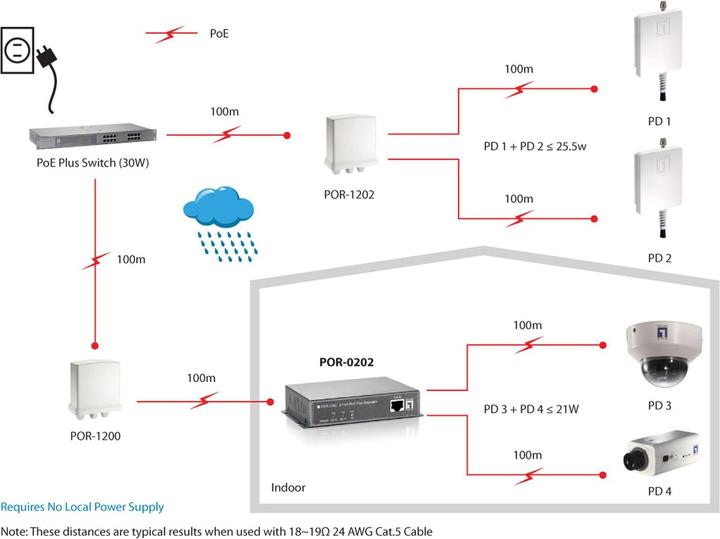

For system integrators seeking a professional solution to extend their PoE (802.3af/at) network, the POR-0202 is the ideal accessory to enhance network performance. As a 2-port repeater, it simplifies the integration of additional devices into the network, increasing deployment flexibility. Standard cable lengths only reach 100 meters, but with the POR-0202, installers can extend PoE network performance up to 200 meters. Furthermore, the range can be tripled by daisy-chaining multiple PoE repeaters. (The maximum distance depends on the required PD power.)

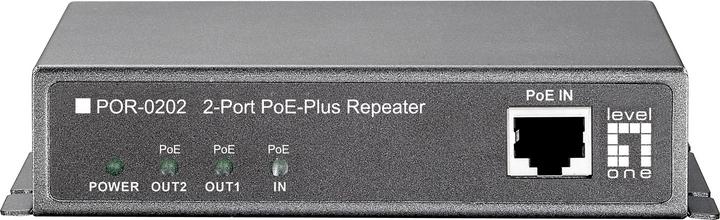

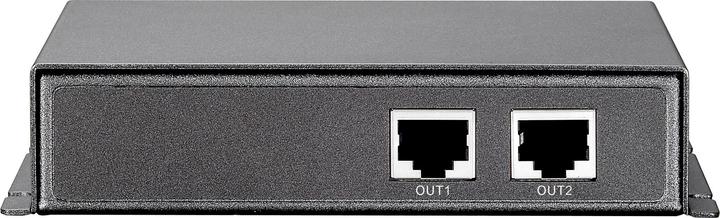

The POR-0202 features 3 RJ-45 ports for easy installation: 1 "IN" port that receives power and data for the first 100 meters, and 2 "OUT" ports that extend power and data for an additional 100 meters. With its robust metal housing, the POR-0202 fits into any tight space.

Applications

The POR-0202 is a comprehensive solution for powering PoE IP cameras and any Fast Ethernet PoE PD with 802.3at PSE.

Features:

• 802.3af / 802.3at / High-Power PoE to remote device
• High-Power Midspan PoE compliant for simplified deployment and installation
• Extended PoE connection for an additional 100 meters
• 2 integrated PoE ports for PoE devices
• Easy plug-and-play installation
• No additional power supply required
• Multiple PoE amplifiers can be used in a daisy-chain for extended range

Standards:

• IEEE 802.3 10Base-T, Ethernet
• IEEE 802.3u 100Base-TX, Fast Ethernet
• IEEE 802.3x Ethernet Flow Control

Color: gray
Dimensions: 130 x 90 x 28 mm
Weight: 400 g.
