Lanview 19" IP66 20U W=600mm D=600mm

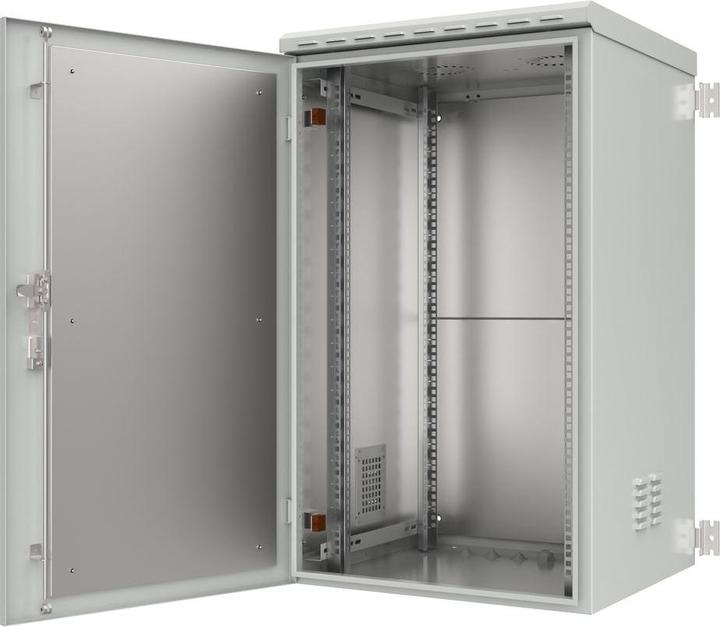

Product dimensions: 600 x 600 x 995 mm. Note: The depth is higher because of the protruding roof; the depth without the roof is 400 mm (see the drawing for more details). Colored strips located at the sides of the 4 mm, antistatic, tempered, smoothed glass door, having an extruded aluminum frame and high fracture resistance, present a decorative view. In free-standing type applications, they may be used with optional pinion feet or caster groups. By attaching a ventilation module with a maximum of 2 fans (optional) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved. If no fan module is attached, these ventilation holes enable air circulation inside the cabinet and the discharge of hot air by passive ventilation. Since the side doors are fixed and not detachable, access to the cabinet is ensured only from the front in wall mounting applications and from the back and front in free-standing applications. The standard cabinet is delivered with 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet. By means of 145 mm x 70 mm cable inlet holes at the upper, lower, and rear door of the cabinet, it provides cable inlet in 3 directions, which in turn facilitates installation. Thanks to the rubber-edged cable entry module, movable for 0-50 mm and with a sliding compression system, incoming cables are compressed safely while reducing dust inside to maximum levels.
