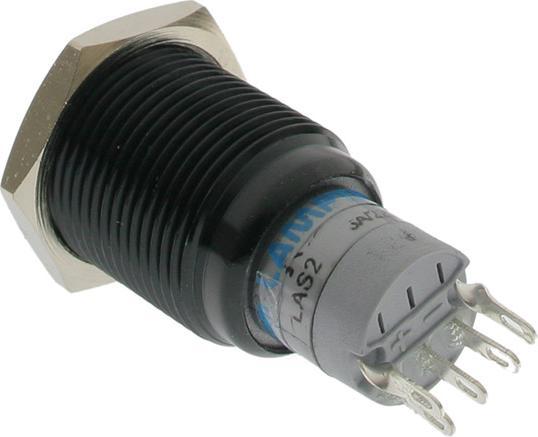

Lamptron compatible vandalism button / switch 16mm - Blackline - orange

Window mounted, lighting installed, and matching drive covers created. However, power and reset buttons are often components that are very difficult to replace with something suitable.

With the illuminated power switch, there is now an alternative to the often uninspiring buttons! Finished in elegant black, this switch particularly impresses with the orange illuminated LED ring made of plastic, which gives the front an extremely sophisticated appearance.

The installation of the switch is extremely simple, featuring a normally open and a normally closed contact, as well as a separate contact pair for controlling the LEDs.

Note: This is a combined switch and push button. Unlike the 19 mm vandal-resistant push buttons, the 16 mm models allow for two different modes. If the button is pressed lightly, the push button function is activated; if it is pressed fully, it latches.

A special cable is available for connecting this vandal-resistant push button, eliminating the need for complicated DIY constructions.

Technical details:

• Hexagon: 19 mm
• Thread diameter: 16 mm
• Material: Steel
• Color: Black
• LED: Orange
• 50 mA, 24 V contact switch
• Connections: 5.
