Kemo Stepper motor interface 4 pin

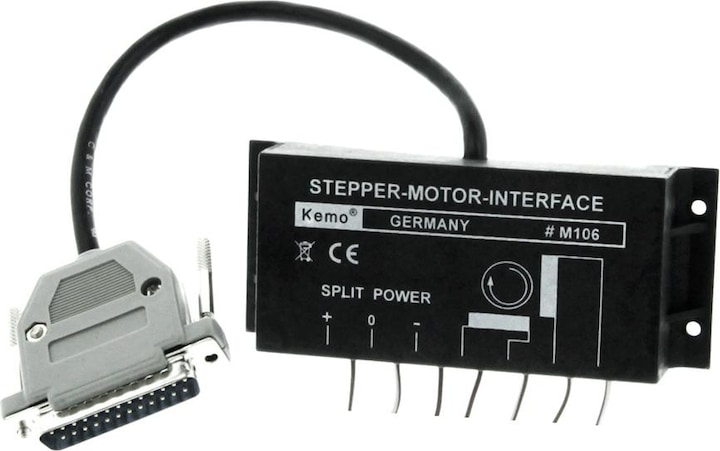

Stepper motor interface with 4 pins for controlling a bipolar 4-string stepper motor, operating at 3 - 17 V with a maximum of 2 A. A double power supply unit (split power supply) is required for the power supply. It connects to a standard AT PC of type '486 via the printer connection LPT1.

The motor can be controlled manually using the computer keyboard or through a pre-written program with an automatic sequence.

With an optionally available interface switch (M108), up to 4 stepper motors can be operated simultaneously through individual stepper motor interfaces. The necessary software for DOS and Windows (98, NT, 2000, XP) is included on a 3.5" disc and is also available for download from the manufacturer's website.

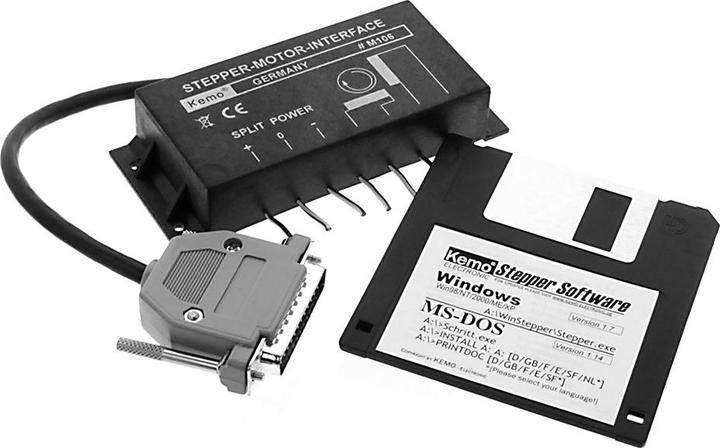

Scope of delivery:

• 1 stepper motor interface module (4-line)
• 1 "Stepper motor control" software disc (Version: Windows 1.7 / DOS 1.14)
• 1 printed document "General information no. M1002".
