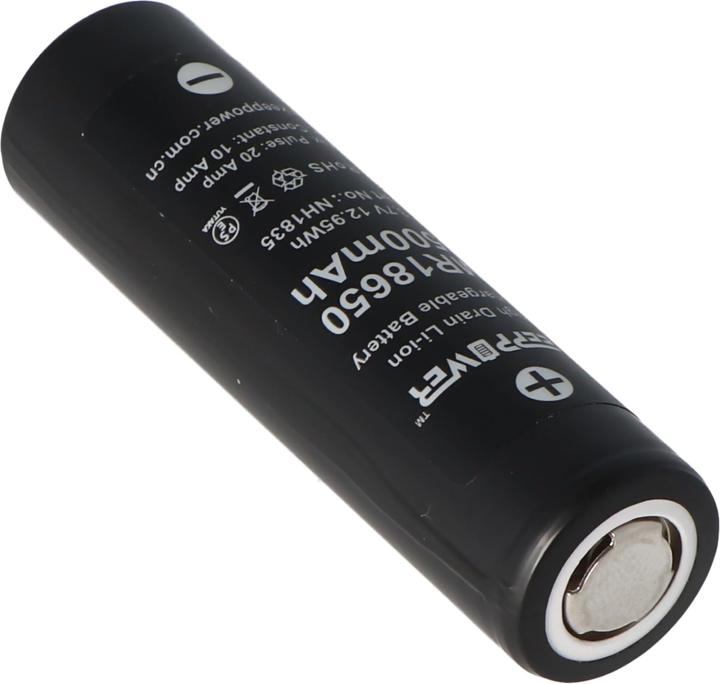

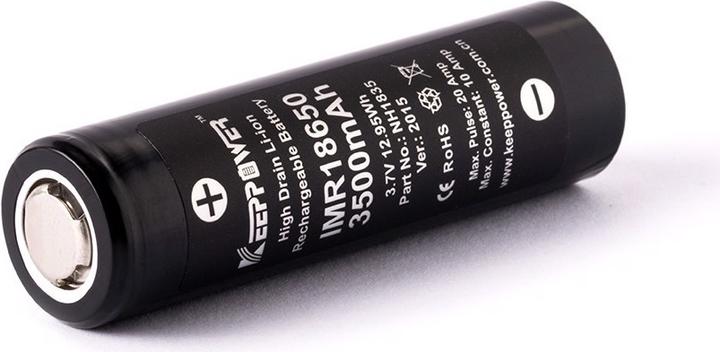

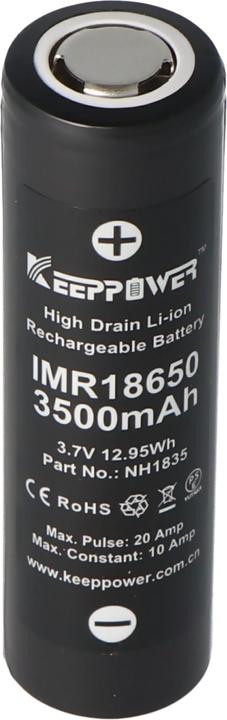

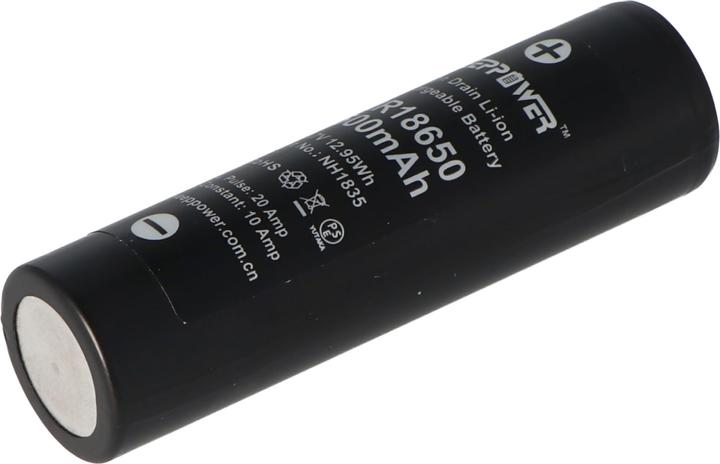

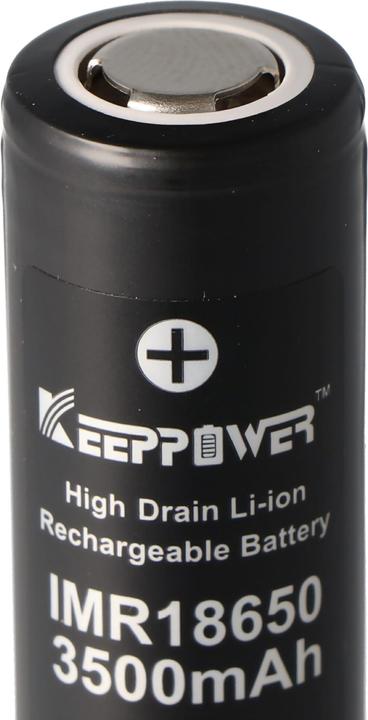

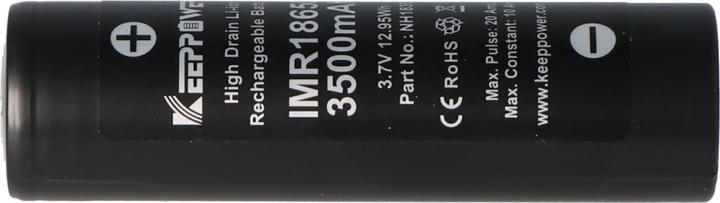

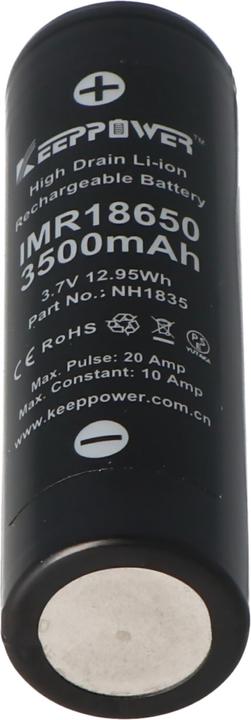

Keeppower Battery IMR18650 - (Flat Top)

A quality cell (Panasonic NCR18650GA) encased in safety heat shrink tubing by Keeppower. Developed for the areas of LEDs, electromobility, model making etc.. Best suited for battery carriers. Not suitable for sub-ohm range.Keeppower IMR18650 Lithium Ion BatteryCellNCR18650GACapacity Nominal3500mAhMin. capacity3350mAhNominal voltage3.6V/3.7VCharging voltage4.20VDischarging voltage2.50VPluspolflat (Flat Top)Max. Discharge Current (Continuous Load)3C = 10AMax. Max. discharge current (pulse approx. 3 sec.)5.5C = 20AChemistryLiCoSi02Protective circuit PCBnot presentCharge methodCC-CVDiameter18.45 mm ± 0.10 mmHeight65.1 mm ± 0.15 mmWeight48 g ± 1 gSafety instructions:Lithium cells may only be operated with protective electronics!
Please note that lithium cells may only be used by qualified personnel.
Incorrect handling or short-circuiting can lead to fire or explosion.Other features:Lithium-ion batteries are thermally stable and are not subject to memory effect.
They work on the basis of lithium and are characterized by a high energy density.Scope of delivery:1x Keeppower IMR 18650 with 3500mAh

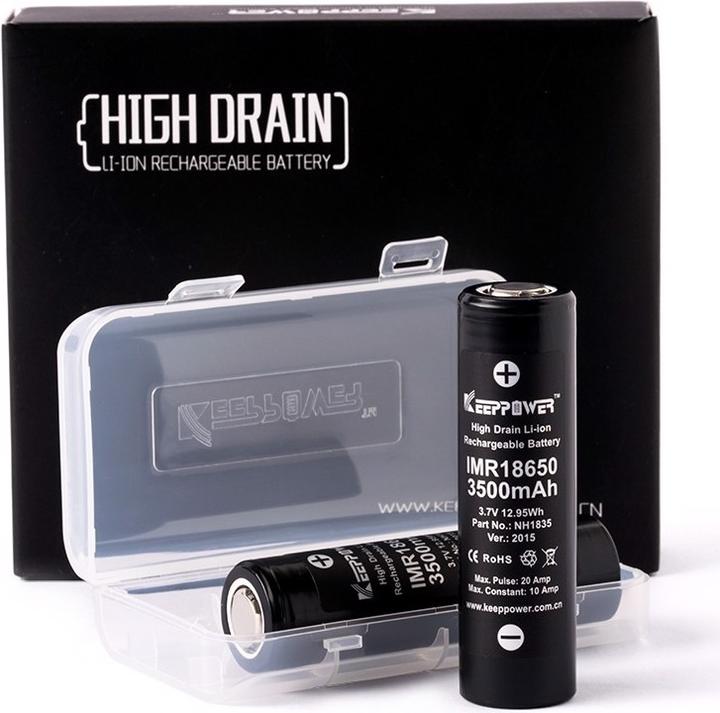

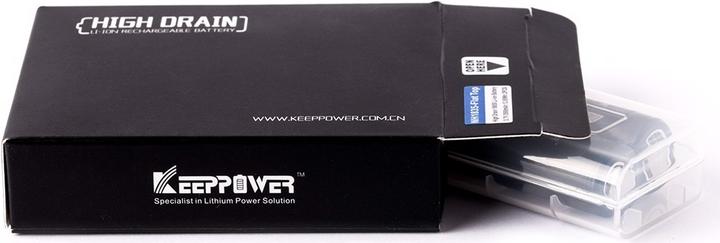

When ordering two batteries, a battery box is included free of charge.Technical data for "Keeppower IMR18650 - 3500mAh, 3,6V - 3,7V Li-Ion-Battery (Flat Top) "Charging current normal1500mAHours of charge at 1550mA4hHours of charge fast2300mAHours of charge at 2710mA3,5hOperating temperature charging0 °C - 45 °COperating temperature discharging-20 °C - 60 °C Notes:For charging Lithium Ion batteries a special charger is required, which charges the batteries according to a special charging procedure. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 4.1 volts, as this would reduce the risk of fire and explosion.
