Name: Sma — Sma
Brand: Kabelmeister
SKU: 31760022
Price: 11 CHF
Availability: InStock
Rating: 4.3 (3 reviews)

productDetailPageQuery

Kabelmeister

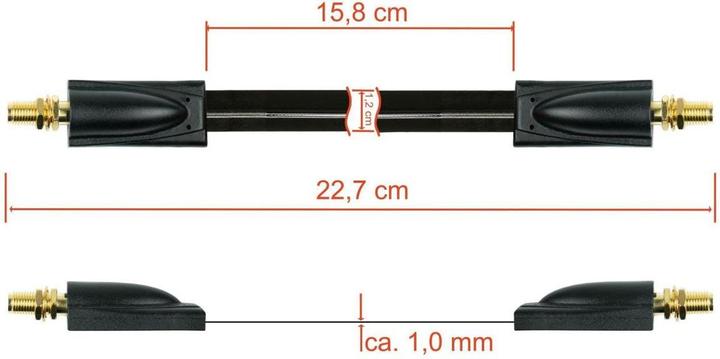

With the Ultra Slim High Quality SMA feed-through from kabelmeister, you can simply feed your RF connection through the window or door frame. You can rely on the proven kabelmeister quality. The feed-through is thin enough (approx. 1 mm) to allow the window or door to close properly and at the same time strong enough to withstand many openings. The use of modern production facilities, standardised processes and high-quality materials ensures that the products are of a consistently high quality.

The feed-through is supplied with the connection combination SMA socket to SMA socket and is therefore ideally suited for use with 5G, LTE / 4G or UMTS / 3G antennas and antenna cables.

Advantages of the kabelmeister SMA feed-through:

- Quick and easy installation
- No drilling or holes in the wall required - ideal for rented flats
- Low loss of reception

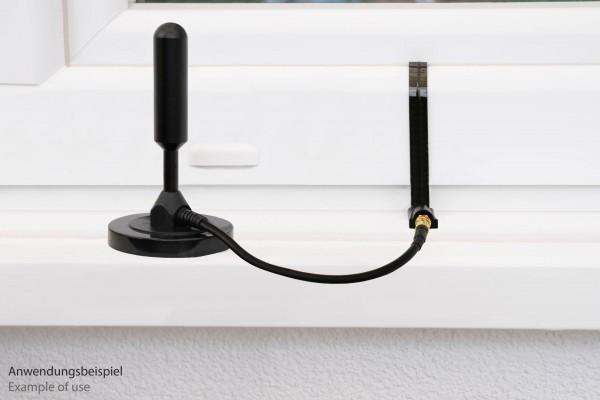

Quick and tool-free installation: open the window or door, place the SMA feed-through in between, connect the HF cable on both sides, close the window or door, done. No need for laborious drilling through the wall. For a better hold, the connections can also be fixed in place with the two 3M adhesive strips supplied.

High-quality cable construction: The conductor of the 1.13 coaxial cable is made of silver-plated copper and has a tin-plated copper shield. High-quality cable construction enables optimum signal transmission with high breaking strength. The SMA connections are gold-plated and fitted with gold-plated contacts to ensure perfect signal transmission.

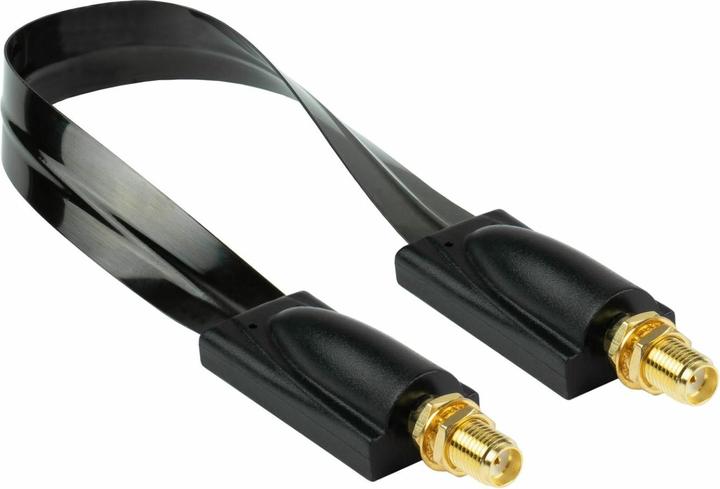

Actual product image Kabelmeister Sma — Sma (Window bushing)

Key specifications

Cable colour

Coaxial cable type

Number of shieldings

Good shielding against interfering signals is important so that, for example, the mobile phone does not cause the screen to flicker. The shielding significantly influences the transmission behavior. The shorter the cables, the less problematic the shielding and even inexpensive cables can provide satisfactory services. As a rule, the shielding is only specified in the form of a number by the manufacturer. The more the cable is shielded from magnetic fields, the higher the quality.
