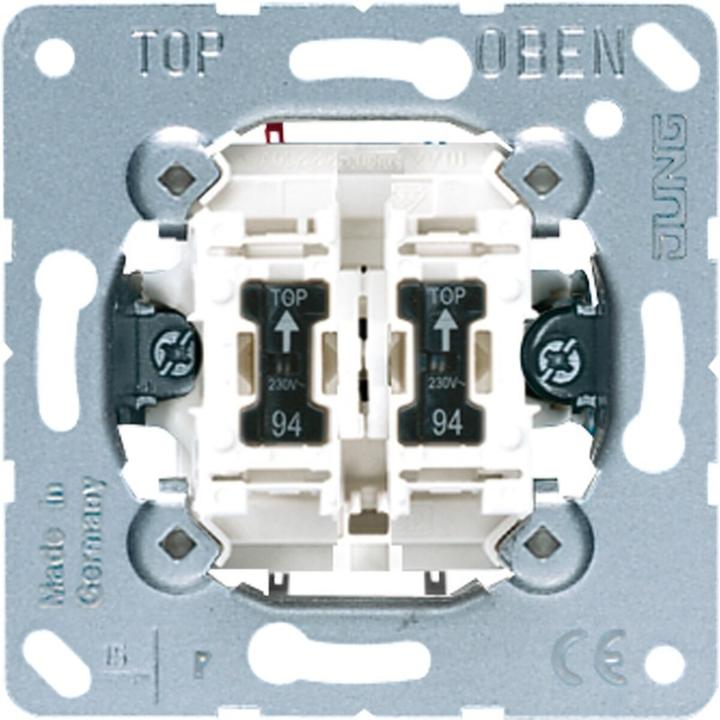

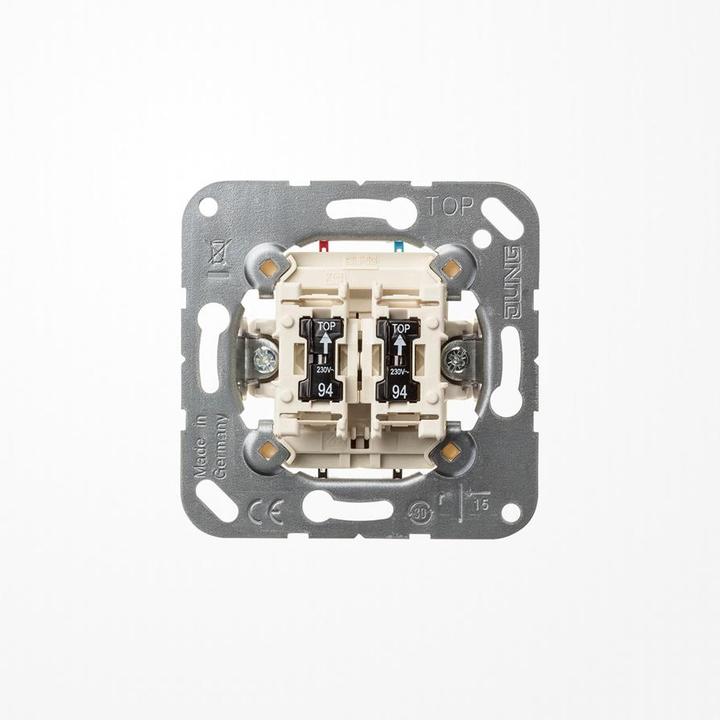

JUNG Switch program Wipp control switch 10AX 250V series glow lamps
Only 1 piece in stock at third-party supplier
Product details
The rocker control switch 10AX 250V from the Glimmlampen series by JUNG is a reliable and functional product designed for flush mounting. With a rated voltage of 250 V and a switching current of 10 AX, this switch is ideal for use in various electrical installations. The two integrated glow lamps provide a practical lighting function that serves both control and orientation purposes. The glow lamps can be replaced from the front without interrupting the power supply, making maintenance easier. The switch is equipped with spring terminals that allow for a simple and secure connection for rigid conductors up to 2.5 mm². Additionally, the switch meets the requirements of DIN VDE 0632 (EN 60 669) and is halogen-free, making it an environmentally friendly choice.
- Two glow lamps for control and orientation
- Easy maintenance through voltage-free replacement of glow lamps
- Spring terminals for secure connection of rigid conductors
- Complies with standards DIN VDE 0632 (EN 60 669)
- Halogen-free and environmentally friendly.
Mounting type | Flush-mounted |
Width | 71 mm |
Item number | 17827500 |
Manufacturer | JUNG |
Category | Buttons + Switches |
Manufacturer No. | 505KOU5 |
Release date | 20.11.2021 |
Exact colour description | Other |
Material group | Plastic |
Operating mode | Key, Rocker |
Number of actuation levels | 2x |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
Number of poles | 1x |
Nominal voltage | 250 V |
Nominal current | 10 A |
Protection type (IP code) | IP20 |
Switch + push-button Additional function | Lighting |
Country of origin | China |
CO₂ emissions | 0.28 kg |
Climate contribution | CHF 0.11 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Width | 71 mm |
Height | 71 mm |
