Product details

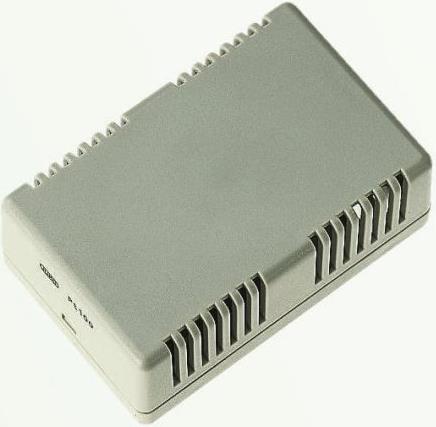

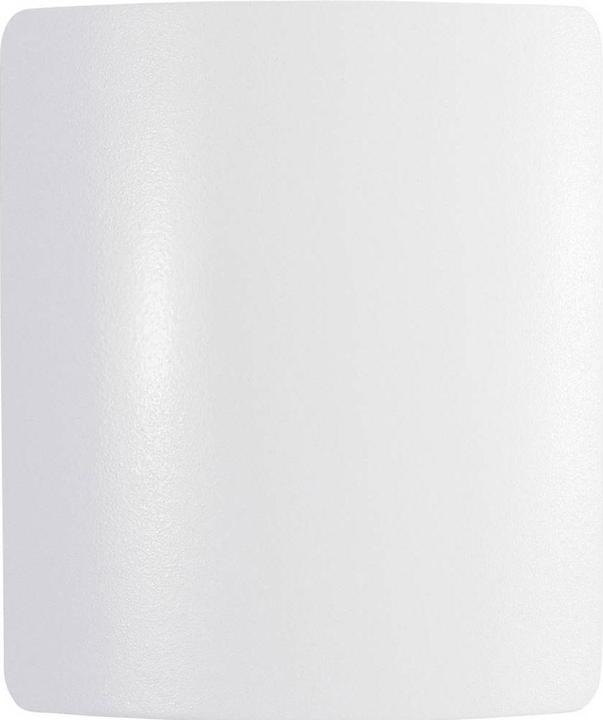

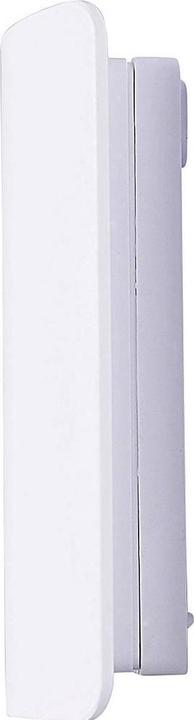

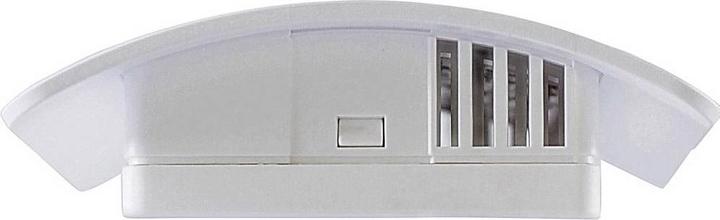

The Pt100 temperature sensor from Jumo is a highly precise measuring instrument specifically designed for use in automation technology. It is ideal for temperature measurement indoors, in ventilation ducts, and outdoors. The sensor is constructed according to the EN 60 751 standard, Class B, and offers reliable performance in the temperature range of -30 to 80 °C. The various housing materials and protection classes allow for adaptation to different environments and requirements. The sensor can be supplied in different versions, such as Pt 500 or Pt 1000, and supports 2-, 3-, and 4-wire connections. An optional transmitter can be integrated to expand functionality.
- Suitable for indoor and outdoor applications
- Measurement range of -30 to 80 °C
- Available in various resistance versions (Pt100, Pt500, Pt1000)
- Optional integration of a transmitter.
Item number | 9937546 |
Manufacturer | Jumo |
Category | Home automation |
Manufacturer no. | 902520/10-572-1001-1/000 |
Release date | 22.10.2018 |
External links |
Automation type | Sensor |
Application range | Indoor, Outdoor |
Manufacturer Type | 000, 10-572-1001-1, 902520 |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Temperature sensor |
Length | 96 mm |
Width | 82 mm |
Height | 25 mm |
Specifications may include unverified machine translations.
