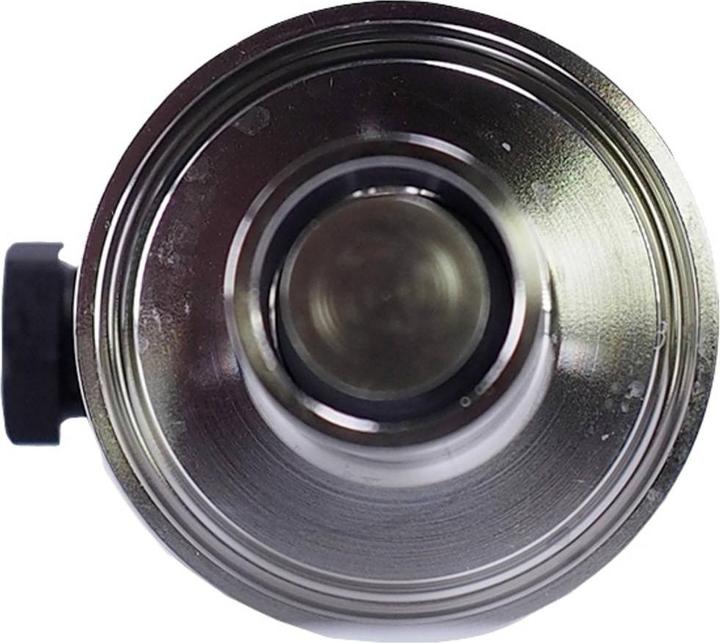

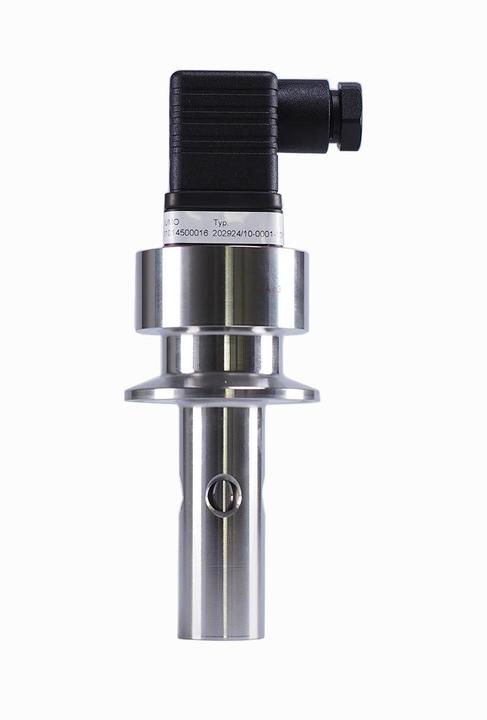

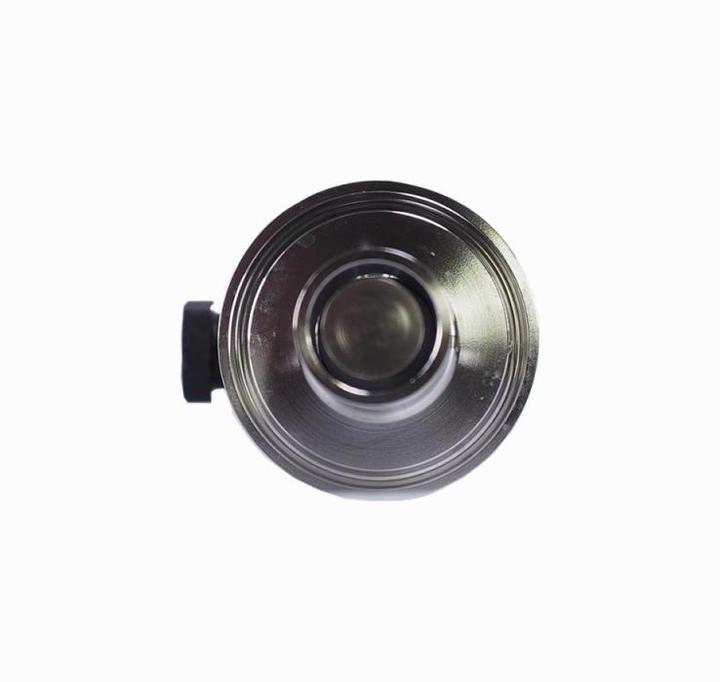

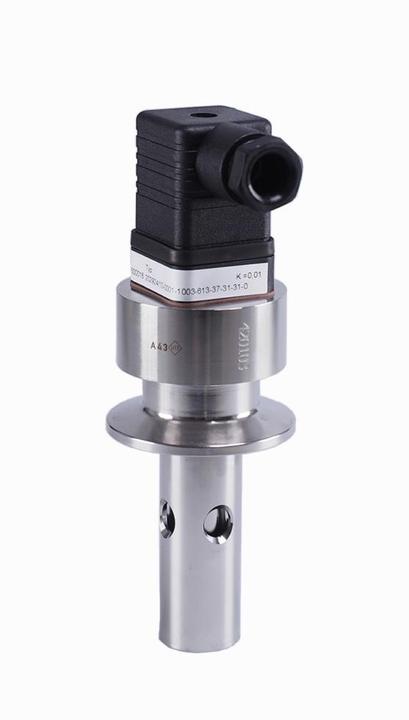

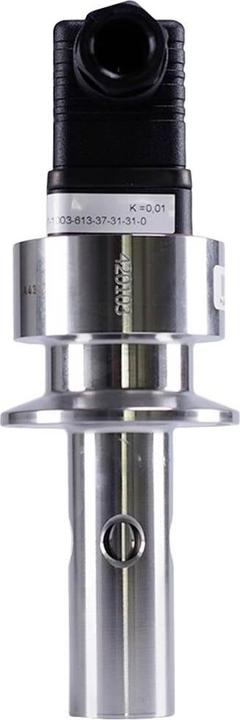

Jumo Conductivity sensor

Jumo Conductivity Sensor 00420617

Manufacturer: Jumo
Designation: Conductivity sensor 0.05-10 µS/cm, 0.1-20 MΩ
Type: 00420617
Design: Conductive
Insertion length: 60 mm
Max. pressure: 16 bar
Max. temperature: 135 °C
Sensor type: Pt100
Cell constant: 0.01
Electrode material: Stainless steel 316 (1.4435)
Process connection design: Other
Process connection material: Stainless steel 316 (1.4435)
Electrical connection design: Other
Angle connector: Yes
Cable length: 0 m

This conductive conductivity sensor has a cell constant of K=0.01 (for measurement ranges of 0.05 to 10 µS/cm or 0.1 to 20 MΩ/cm) and features a Pt100 measuring element in a two-wire configuration. Installation is carried out via the process connection clamp DN 25 made of stainless steel (1.4435). An angled device connector according to DIN 43650 is available for the electrical connection. The electrode material is stainless steel (1.4435). The insertion length is 60 mm. The operating temperature ranges from 0 to +135 °C, with a maximum pressure load of 16 bar at 25 °C and 9 bar at 60 °C. This version is a so-called pharmaceutical version with a certificate of conformity according to EN 10204 3.1 for material and roughness, with the roughness of the medium-contacting parts being less than 0.8 µm, accompanied by ASTM certification and sealed in foil.
