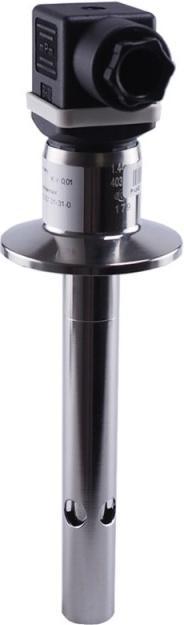

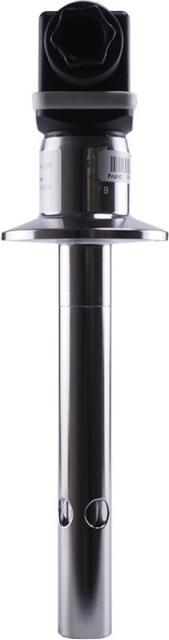

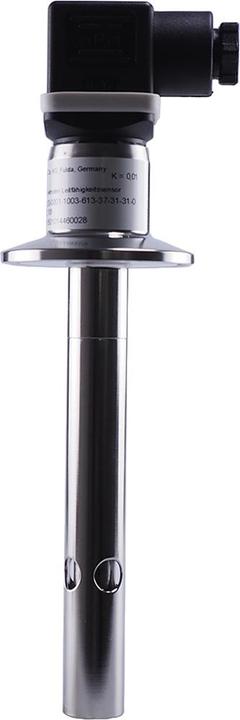

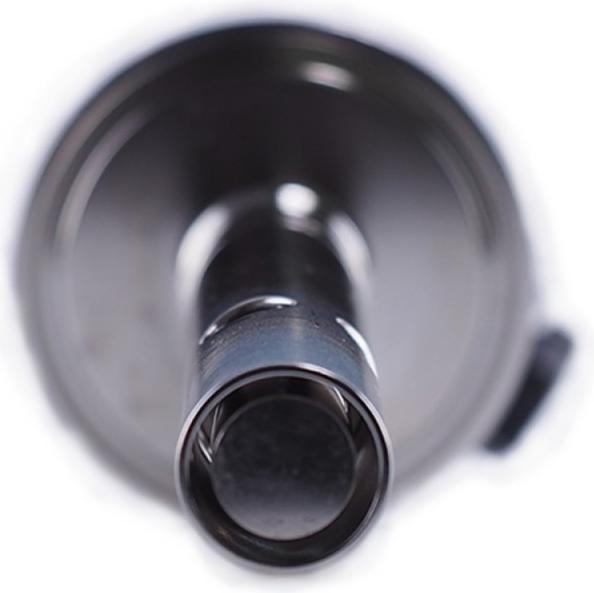

Jumo Conductivity sensor

Jumo conductivity sensor 00462108 Manufacturer :Jumo Designation :Conductivity sensor 0.05-10uS/cm,0.1-20M Type :00462108 Version :conductive Insertion length :115 mm Max. pressure :16 bar Max. pressure :16 bar Pressure :16 bar Max. Temperature :135 °C Sensor type :Pt100 Cell constant :0.01 Electrode material :316 stainless steel (1.4435) Process connection design :other Process connection material :316 stainless steel (1.4435) Type of electrical connection :other Angled connector :yes Cable length :0 m Jumo conductivity sensor 00462108: further details This conductive conductivity sensor has a cell constant of K=0.1 (for measuring ranges 0.05 to 10 uS/cm or 0.1 to 20 MOhm/cm) and a Pt100 measuring insert in a two-wire circuit. Installation is carried out via the stainless steel (1.4435) process connection clamp DN 25. An angled device plug in accordance with DIN 43650 is available for electrical connection. The electrode material is stainless steel (1.4435). The installation length is 115 mm. The operating temperature is 0 to +135 °C, the maximum pressure load is 16 bar at 25 °C and 1 bar at 135 °C. EAN: 4053877005926.
