The MAG540 set-top box is equipped with robust hardware and can operate for months without a restart. It features an Amlogic S905Y4 SoC with a Quad-Core ARM Cortex-A35 CPU, Linux OS, and supports 4K video and HEVC technology, allowing users to enjoy high-resolution content without delay even at lower bitrates. For added convenience, it comes with USB ports for a mouse, keyboard, or external storage. The Ethernet connection ensures a stable internet connection and smooth video playback.
Audio and Video Modes: PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Audio Codecs: MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Audio Formats: MP3, OGG, WAV, AAC
Video Codecs: MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, AV1, 3D video support
Video Containers: TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image Formats: JPEG, PNG, BMP, RAW
Subtitles: DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captions
Playlist Formats: M3U, M3U8, PLS, CUE
Hardware Features:
Chipset: Amlogic S905Y4-B
Performance: 16,500 DMIPS
CPU: Quad-Core ARM Cortex-A35
RAM: 1 GB DDR3
Storage: 4 GB eMMC
Software and CAS/DRM: OS Linux 4.9

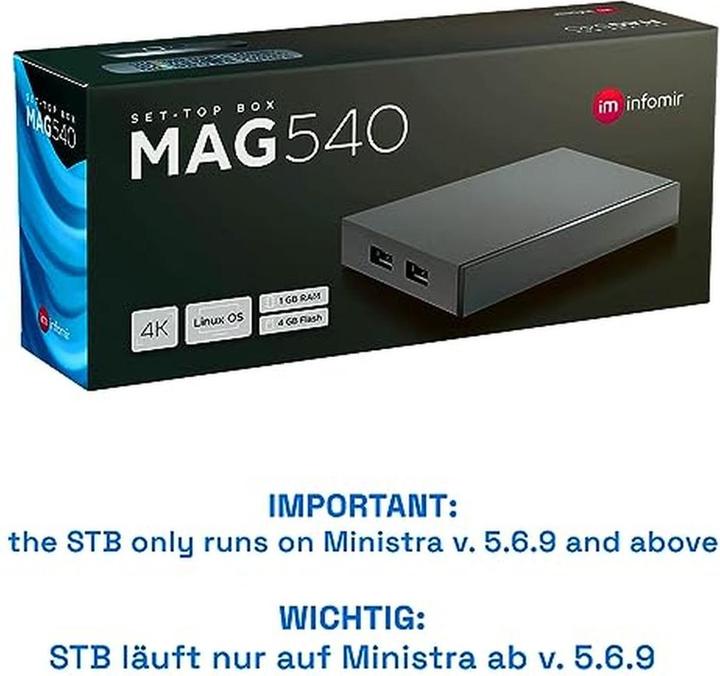

Middleware: Pre-integrated Ministra TV platform. We can integrate the operator's applications into the interface and customize or replace the interface.

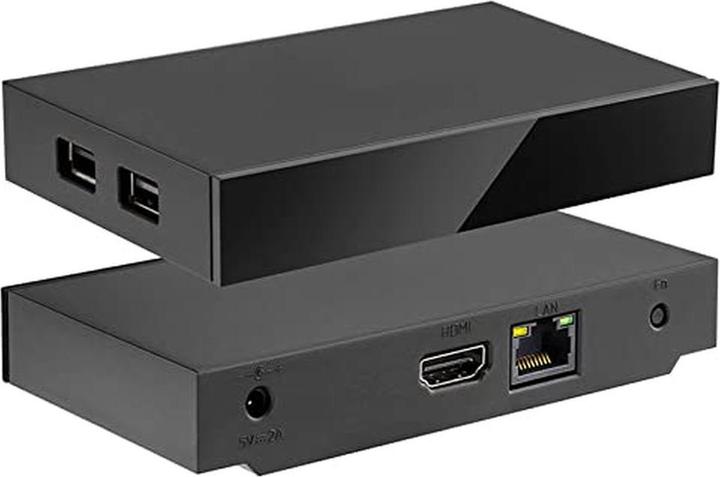

Connections:
Digital Ports: HDMI 2.1
Ethernet: 100 Mbps
USB: 2 × USB 2.0
Power Supply: DC 5 V, 2 A

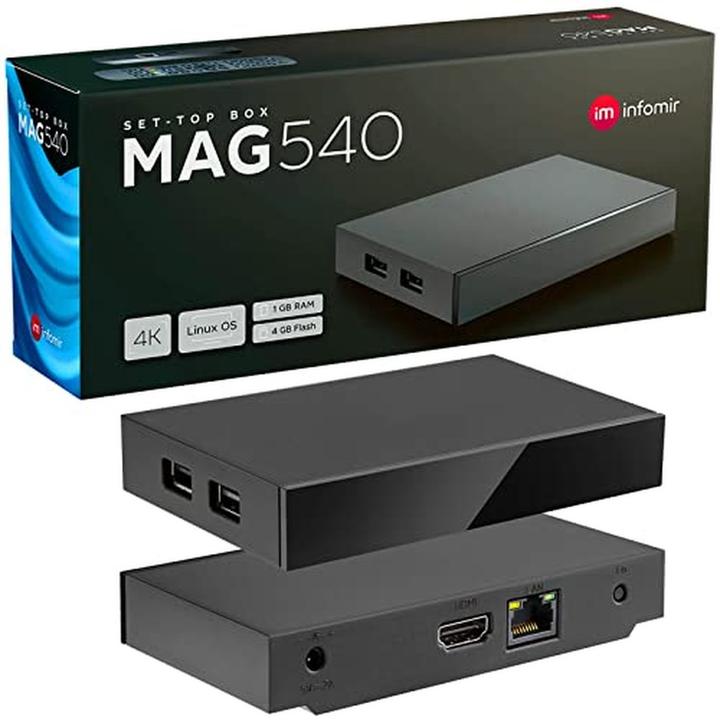

Included in the package: MAG 540, power supply, HDMI cable, remote control, 2x AAA batteries.
Operating System Version | Linux |
Max. video resolution standard | 4K |
Storage capacity | 4 GB |
Memory capacity (RAM) | 1 GB |
Video connections | HDMI (1x) |
Item number | 24445574 |
Manufacturer | infomir |
Category | Streaming box |
Manufacturer no. | 323299 |
Release date | 17.4.2024 |
Sales rank in Category Streaming box | 42 of 143 |
May include power adapter | No |
Colour | Black |
Exact colour description | Black |
Data storage | Hard drive |
Max. video resolution standard | 4K |
Max. Video resolution | 3840 x 2160 Pixels |
Storage capacity | 4 GB |
Operating system | Linux |
Operating System Version | Linux |
Processor type | ARM Cortex-A35 |
Number of processor cores | 4 -Core |
Memory capacity (RAM) | 1 GB |
Wireless transmission | Wi-Fi |
Video connections | HDMI (1x) |
USB ports | USB-A |
Audio Connections | HDMI (1x) |
Network connections | RJ45 (1x) |
Max. port speed | 100000 kbit/s |
Audio formats | AAC-LC, APE, Dolby Digital Plus, FLAC, HE-AAC |
Video file formats | AVI, M2TS, MKV, mov, mp4, MPEG, TS, VOB |
Smart Home | Not compatible |
Country of origin | Ukraine |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x power supply, 1x HDMI cable, 1x Infomir MAG540 media player, 1x SRC-4005-1 IR remote control, 2x AAA batteries |
Length | 78 mm |
Width | 120 mm |
Height | 21 mm |
Weight | 110 g |
Length | 23.60 cm |
Width | 11.60 cm |
Height | 6.10 cm |
Weight | 441 g |
