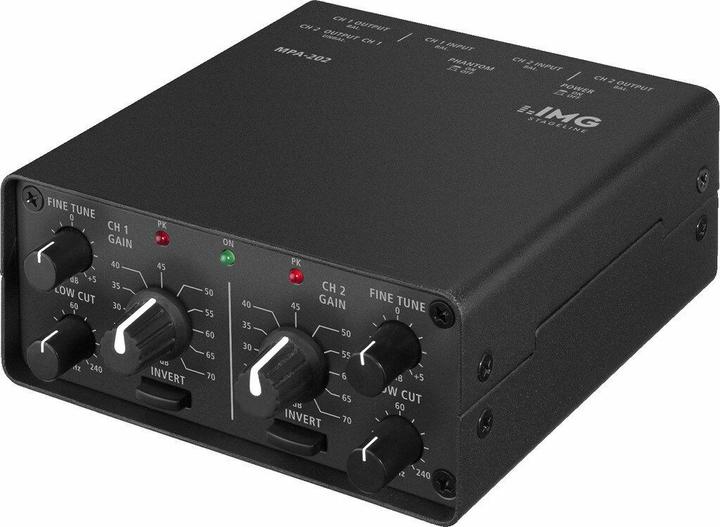

Img Stage Line MPA-202 Microphone Preamplifier

2-Channel Low-Noise Microphone Preamplifier

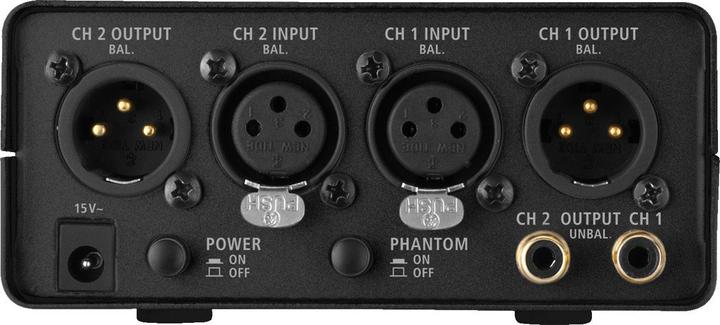

• 2 microphone inputs, XLR, balanced
• 11-step gain from 20-70 dB
• 2 level controls ±5 dB
• Green/red LED for operation/peak
• Phantom power +12 V switchable
• Microphone phase switchable per channel
• Low-cut filter adjustable from 15-240 Hz
• Subsonic filter at 15 Hz, 18 dB/octave
• 2 line outputs, XLR balanced
• 2 line outputs, RCA unbalanced

Safety and Warning Notices:

The device is powered by hazardous mains voltage. Therefore, never attempt to make any modifications to it and do not insert anything into the ventilation openings. There is a risk of electric shock. Do not operate the device and immediately unplug it from the socket if there are visible damages to the device or the power cable, if there is suspicion of a defect after a fall or similar incident, or if malfunctions occur. In any case, take the device to a professional repair shop. Use the device only indoors and protect it from dripping and splashing water, high humidity, and heat (permissible operating temperature range 0 - 40 °C). Never pull the power plug out of the socket by the cable; always grasp the plug itself. If the device is to be permanently taken out of service, hand it over to a local recycling facility for environmentally friendly disposal.
