Img Stage Line Audio transmission system, 672.000-691.750 MHz
Product details

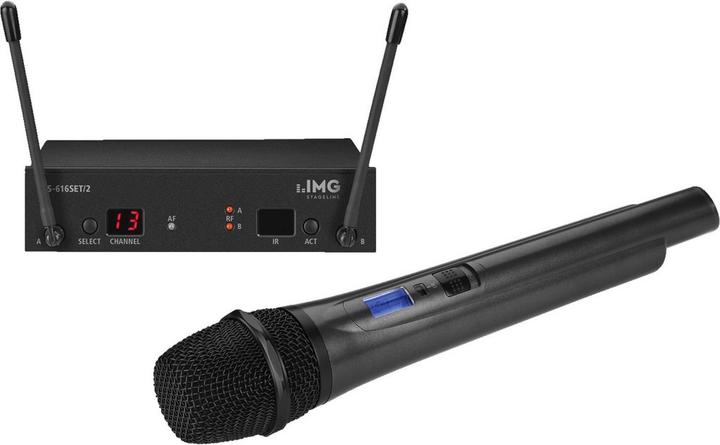

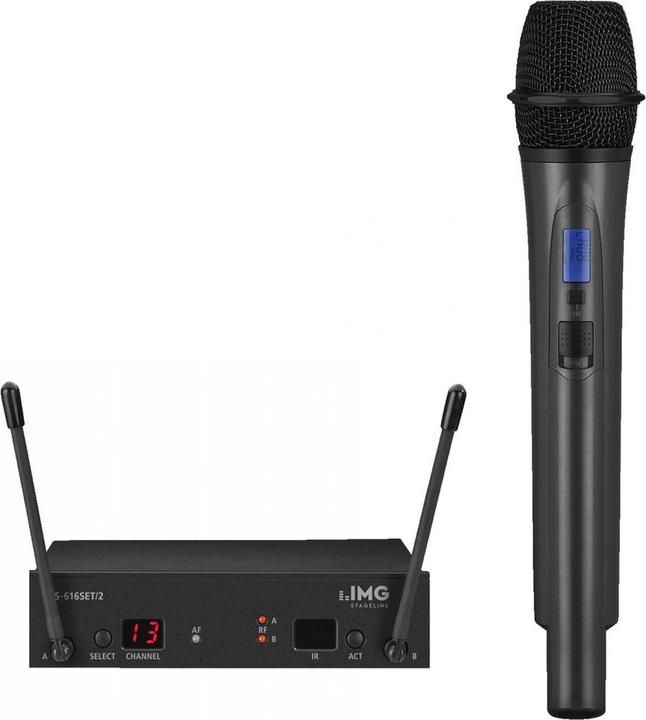

Multi-frequency microphone system with UHF-PLL technology
- 1 handheld microphone transmitter, 1 receiver, 1 power supply
- True diversity system
- 80 adjustable UHF channels (672.000-691.750 MHz)
- ACT function for transferring the selected frequency to the handheld microphone via infrared signal
- Automatic scan
- Controls for volume and squelch
- Switchable transmission power on the handheld microphone (high/low)
- Display for channel, antenna A/B, ACT status, and audio level (receiver), channel and battery status (handheld microphone)
- Sturdy metal housing (receiver)
There are restrictions or requirements in the EU! Please pay attention to the notes on wireless systems in the "Important Information" section!
Safety and warning notices
The device is powered by hazardous mains voltage. Therefore, never attempt to make any modifications and do not insert anything into the ventilation openings. There is a risk of electric shock. Do not operate the device and immediately unplug it from the outlet if there are visible damages to the device or the power cord, if there is suspicion of a defect after a fall or similar incident, or if malfunctions occur. In any case, take the device to a specialist workshop for repair. Use the device only indoors and protect it from dripping and splashing water, high humidity, and heat (permissible operating temperature range 0 - 40 °C). Never pull the power plug out of the socket by the cable; always grasp the plug itself. If the device is not used for an extended period (e.g., longer than a week), remove the batteries.
