IFM Pressure switch Electronic 0 10 bar 0 1 MPa G1/4 AM

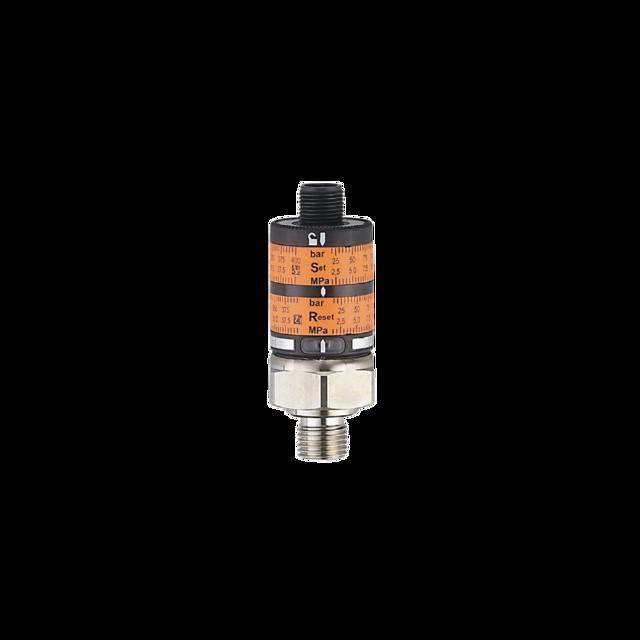

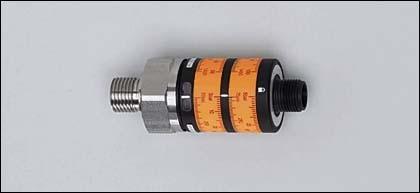

The electronic pressure switch from IFM, model PK6534, is a high-precision measuring device designed for applications in the pressure range of 0 to 10 bar (0 to 1 MPa). With a maximum operating pressure capacity of 25000 hPa and a burst pressure of 300 bar, this device offers reliable performance in demanding environments. The pressure switch is suitable for use in various industrial applications and features a robust construction that withstands temperatures from -25 to 80 °C. The connection is made via a G1/4A process connection, and the electrical connection is realized through an M12 connector. With an operating voltage of 9.6 to 32 V DC and a current consumption of 25 mA, the pressure switch is efficient and versatile.

• Maximum operating pressure of 25000 hPa
• Burst pressure of 300 bar
• Operating temperature range of -25 to 80 °C
• Robust housing made of PBT (Pocan) and V4A (1.4404)
• Protection class IP67 for high resistance to dust and water.
