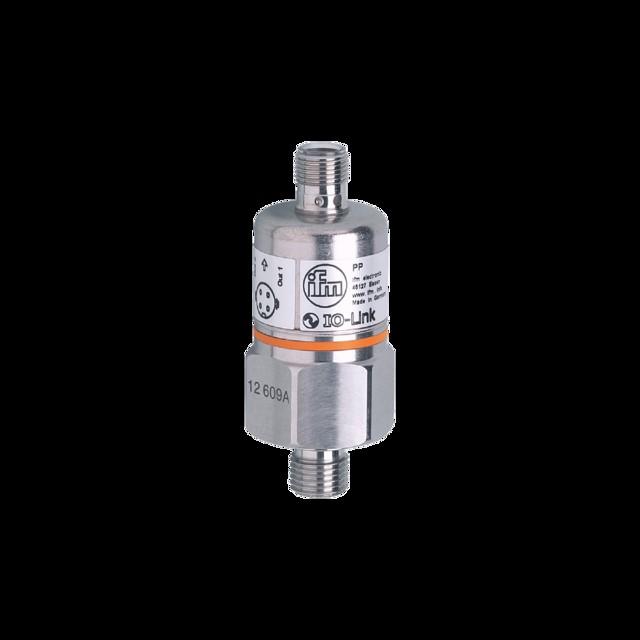

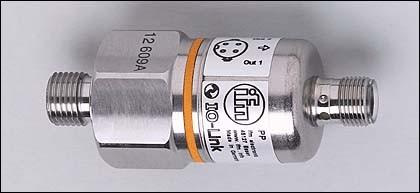

IFM Pressure sensor Electronic 0 2.5 bar 0 36.3 psi 0

Ifm Electronic Pressure sensor electronic PP7556 Manufacturer :Ifm Electronic Designation :Pressure sensor electronic 0-2,5bar,DC Type :PP7556 Suitable as monitor :no Suitable as 2 point controller :yes Suitable as limiter :no Switch-on pressure :0,02..2,5 bar Switch-off pressure :0,01..2,49 bar Max. test pressure :20 bar Bursting pressure :50 bar Medium temperature :-25..90 °C Rated operating voltage Ue at DC :9,6...90 °C Test pressure :20 bar Burst pressure :50 bar Medium temperature :-25..90 °C Rated operating voltage Ue at DC :9.6...36 V Rated operational current Ie at AC-1, 400 V :0.25 A Number of auxiliary contacts as make contacts :2 Number of auxiliary contacts as break contacts :2 Version of electrical connection :other With manual override :no With manual on/off switch :no Electronic version :yes Explosion-proof :no Protection class (IP) :IP68 Ifm Electronic pressure sensor electronic PP7556: more details Pressure sensors, Electronic pressure sensor, Measuring range: 0...2.5 bar / 0...36.3 psi / 0...250 kPa, Process connection: G 1/4A / M5 I, 4-wire, DC PNP, Operating voltage: 9.6...36 V DC, current consumption: 45 mA, 2 x NO / NC programmable or 1 x NO / NC programmable + 1 x NC (diagnostic function), 2 x n.o. / n.c. progr. or 1 x n.o. / n.c. progr. + 1 x n.c. (diagnostic function) plug connection, M12 plug connection, switching point adjustment by teach function, material housing: V2A (1.4301) FPM (Viton) EPDM/X (Santoprene) PA, materials in contact with the medium: V2A (1.4305) ceramic FPM (Viton) , EAN: 4021179189712.
