Product details

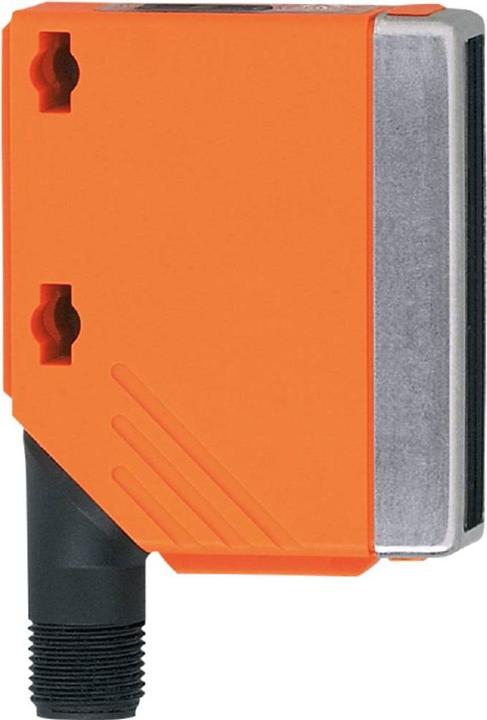

The IFM O5K500 is a versatile contrast switch designed for various applications in automation technology. With a programmable switching function and the ability to process both PNP and NPN signals, this switch offers flexibility and adaptability. The O5K500 is equipped with an IP67 protection rating, making it ideal for use in demanding environments. Its compact design and easy installation via an M12 connector allow for straightforward integration into existing systems. The switch is rated for a nominal voltage of up to 36 V DC and can operate at temperatures ranging from -25 to 60 °C. With a maximum switching frequency of 10,000 Hz, the O5K500 is suitable for applications that require a fast response time. The use of high-quality materials such as PA and V4A ensures durability and reliability.
- Programmable switching function for flexible applications
- IP67 protection rating for use in harsh environments
- Compatible with processing PNP and NPN signals
- Compact design with M12 connector for easy installation
- Operating temperature range of -25 to 60 °C.
Material group | Plastic |
Width | 18.20 mm |
Item number | 32079328 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer no. | O5K500 |
Release date | 17.10.2022 |
Material group | Plastic |
Material | POLYAMIDE, TPU/PC, V4A |
LED colour | Multicoloured |
Number of poles | 3 x |
Nominal voltage | 36 V |
Nominal current | 0.05 A |
Protection type (IP code) | IP67 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Length | 46.80 mm |
Width | 18.20 mm |
Height | 70.30 mm |
