ifm Electronic IFM level sensor
Delivered between Tue, 31.3. and Wed, 15.4.
free shipping
Product details

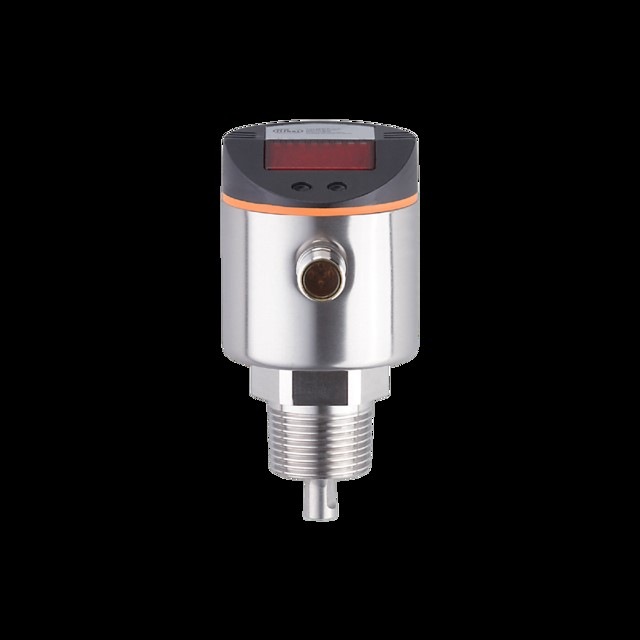

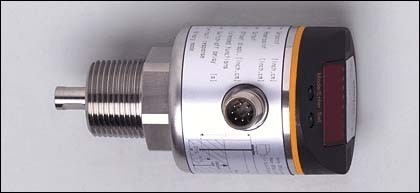

The IFM level sensor LR8300 is a highly advanced electronic device designed for precise level measurement in various applications. With a measurement range of up to 40 mm and a process connection of 3/4" NPT, this sensor provides a reliable solution for monitoring liquids. The sensor operates with a supply voltage of 18 to 30 V DC and has a current consumption of 80 mA. The response sensitivity is adjustable, allowing for flexible adaptation to different requirements. The sensor's housing is rotatable and made from high-quality materials such as V2A and PTFE, ensuring high resistance to chemical influences. The IFM level sensor is ideal for industrial applications where precise level measurement is essential.
- Adjustable response sensitivity for flexible applications
- Rotatable housing for easy installation
- High-quality materials such as V2A and PTFE for durability
- 4 programmable normally open/normally closed contacts for versatile applications
- M12 connector according to EN 61076-2-101 for secure electrical connections.
Width | 50 mm |
Item number | 33871805 |
Manufacturer | ifm Electronic |
Category | Buttons + Switches |
Manufacturer no. | LR8300 |
Release date | 17.5.2023 |
Material group | Plastic |
Material | Housing: V2A (1.4301) FPM (Viton) PBT PC PEI TPE / V PTFE, Materials in contact with the medium: V2A (1.4305) Probe connection: V4A (1.4435) PTFE FPM (Viton) |
Number of actuation levels | 4x |
LED colour | Green, Yellow |
Nominal voltage | 30 V |
Nominal current | 0.08 A |
Country of origin | Germany, Romania |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 pcs. |
Length | 63 mm |
Width | 50 mm |
Height | 87 mm |
